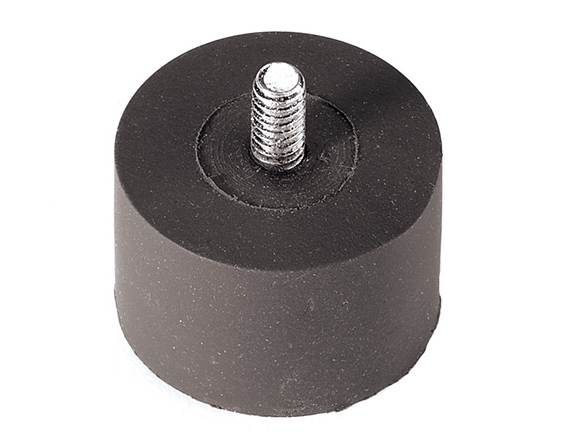

¼-20 Bumper (Package of 4), Sorbothane Bumpers

Product Details Absorb and Dissipate Vibration Stabilize Equipment up to 152lbs English, Metric, or Universal Styles Sorbothane Mounts absorb (57% absorption efficiency) and dissipate energy (70% specific damping). The mounts reduce vibration to other components by isolating the vibrations within the material while absorbing multi-directional forces. These hemisphere mounts can stabilize equipment weighing up to 38 pounds (hemisphere mounts), 65 pounds (¼-20 male bumper mounts), or 29.4 kg (M6 male bumper mounts). Sorbothane Mounts measure 50mm dia. (top) x 26mm thick. The top side of the hemisphere is tacky, while the other side is felt. ¼-20 or M6 male bumper mounts measure 38.1mm dia. x 25.4mm thick. The threaded screw measures 12mm long. All models have a hardness durometer value of 70. Each package contains 4 mounts. Specifications General Type: English Note: ¼-20 Physical & Mechanical Properties Thickness (mm): 25.40 Construction: Sorbothane Diameter (mm): 38.10 Load Capacity (lbs): 30-65 / bumper Threading & Mounting Thread Length (mm): 12.7 Regulatory Compliance RoHS 2015: Compliant × Certificate of Conformance: View ×
