0.08X – 4X Opal Glass, Multi-Function Calibration Target

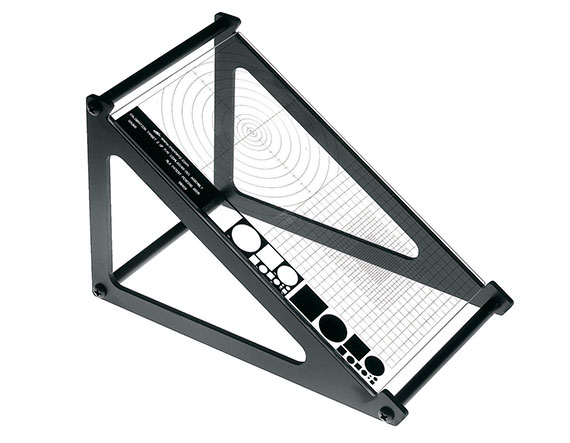

Product Details Calibrates Systems from 0.08X to 4X Measures MTF, DOF, Resolution, FOV, and Distortion NIST Certificate of Accuracy Included Designed to calibrate systems from 0.08X to 4X magnification, this Multifunction Calibration Target has the ability to test many parameters of a visual system at one time, allowing more useful information to be obtained with one target. Depth of Field can be measured for a number of resolutions, allowing measurements to be made that are useful for each particular application. System MTF can be measured with frequencies from 5 lp/mm to 80 lp/mm. The target consists of two framed, 100 x 166 x 1.5mm, glass plates with chrome deposit. The second plate has a circular and grid pattern to measure planar and tilted plane distortion. The pattern is designed to make use of the entire FOV without having to move the target between measurements of each parameter, and it is designed for very high accuracy. Detailed specifications and a certificate of compliance are included. Set #58-770 includes both opal and standard chrome on glass targets. Specifications General Contents of Kit: Foam Lined Case Angled Support Base Target on White Glass Quick Reference Card Physical & Mechanical Properties Dimensions (mm): Plate: 154 x 100 Thickness (mm): 3.20 Dimensional Tolerance (mm): ±1.0 Parallelism (mm): 0.05 Optical Properties Coating: Evaporated Chrome Substrate: Many glass manufacturers offer the same material characteristics under different trade names. Learn More Opal Glass Magnification: 0.08X – 4X Surface Quality: 40-20 Surface Flatness (P-V): 1λ/inch Regulatory Compliance RoHS 2015: Compliant × Certificate of Conformance: View × Reach 240: Compliant ×
