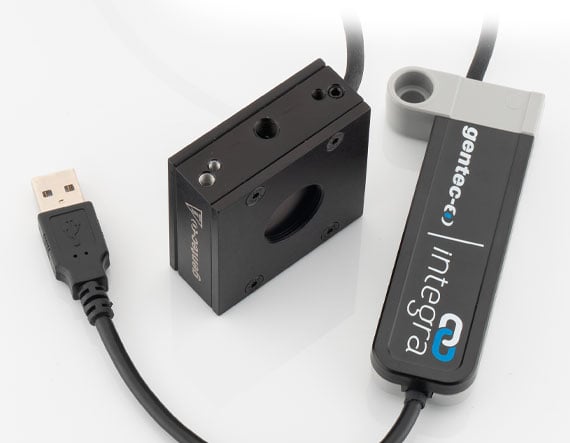

0.19 – 20μm, 15W, Thermopile Power & Energy Detector

Product Details Photodetectors, Thermopiles, and Pyroelectric Detectors Available Various Active Area Sizes Across a Wide Range of Sensitivities Meterless and Wireless Detectors Also Available Gentec-EO Integra USB Power and Energy Detectors combine a power meter and detector in one convenient package while providing fast response times and accurate measurements for beam analysis. These detectors are designed with a USB connector for easy connection to a PC or other acquisition system and include user-friendly software allowing for control via PC or serial commands. Versatile pyroelectric energy detectors with broadband coatings are optimized for low to high power densities. Gentec-EO Integra USB Power and Energy Detectors can be used with a variety of laser powers ranging from the nanowatts to multi-kilowatts. These detectors are ideal for laser energy measurement, thermal imaging, and remote sensing applications. Specifications General Model Number: UP19K-15S-INT-D0 Cooling Method: Convection Compatible Meters: Integra (Integrated) Physical & Mechanical Properties Dimensions (mm): 50 x 50 x 20.6 Weight (g): 160 Weight (kg): 0.16 Active Area (mm): 19 Optical Properties Wavelength Range (nm): 190 – 20000 Wavelength Range (μm): 0.19 – 20 Sensor Type of Sensor: Thermopile Electrical Maximum Incident Beam Power (mW): 15,000 Maximum Incident Beam Power (W): 15 Maximum Incident Power Density (W/cm 2 ): 36,000 Maximum Incident Power Density (kW/cm 2 ): 36 Maximum Incident Energy Density (J/cm 2 , 10ns Pulses): 1 Noise Level: 1 mW Regulatory Compliance Certificate of Conformance: View ×
