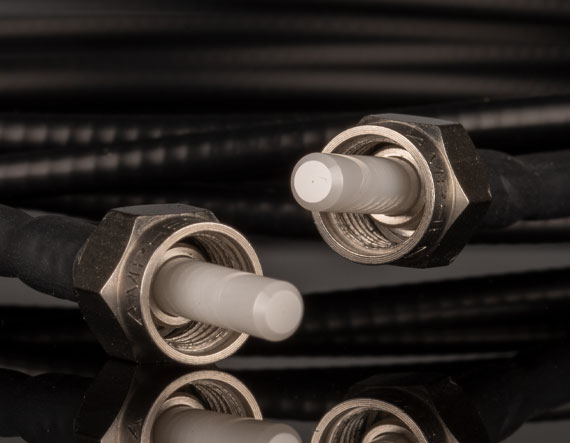

0.22 NA VIS/NIR Patchcord 50 Micron Fiber w/ SMA Connector

Product Details UV/VIS and VIS/NIR Versions Available FC Connector Compatible with Spatial Filters FC Connector Compatible with Fiber Alignment Mounts FC and SMA Connector Options High Quality Fiber Patchcords are designed for UV-VIS (190 – 1250nm) or VIS-NIR (300 – 2400nm) ranges. These Patchcords are 1.5 meters in length with Nylon or Tefzel coatings. With core diameters ranging from 50 – 1000μm, these patchcords provide quality solutions for a variety of core sizes. High Quality Fiber Patchcords are available with SMA 905 or FC/PC connectors featuring a 0.22 numerical aperture. These Patchcords are ideal for applications requiring optimum transmission in the UV-VIS or VIS-IR wavelengths. U.S. Tariff Pricing Notice: Pricing for certain products in this family may reflect recent changes in U.S. tariffs on Canadian-origin products. Prices shown include any applicable tariff-related adjustment; no additional tariff surcharge will be added at checkout. Specifications General Type: Patchcord Fiber Cable Type: Multimode Physical & Mechanical Properties Length (m): 1.5 Core Diameter (μm): 50 Jacket Material: PVC MONOCOIL (0.112″ OD) Optical Properties Coating Type: Nylon Numerical Aperture NA: 0.22 Wavelength: VIS-IR Hardware & Interface Connectivity Connector: SMA 905 Environmental & Durability Factors Operating Temperature (°C): -40 to +100 Regulatory Compliance RoHS 2015: Compliant × Certificate of Conformance: View × Reach 250: Compliant ×
