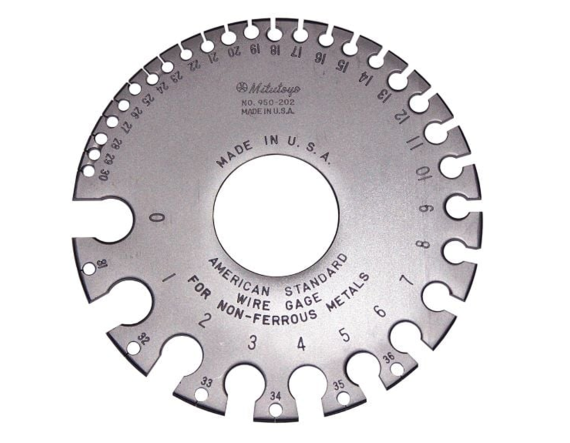

#0-36 American Standard Wire Gage

Product Details Manufactured to the American Wire Gauge (AWG) Standard Slots Ranging from AWG #36 to #0 Steel Construction with Satin Chrome Finish Mitutoyo Wire Gauges provide precise measurements for a wide range of wire sizes, from the finest #36 to the heavier #0 gauge. These gauges are manufactured from stamped steel with a satin chrome finish to withstand rigorous use while maintaining accuracy and adhere to the American Wire Gauge (AWG) Standard. Additionally, these gauges feature deeply engraved AWG scales as well as decimal inch equivalents on the other side of the disc. Mitutoyo Wire Gauges are ideal for measuring size and thickness of wires, sheets, and plates that are made of nonferrous materials such as aluminum, brass, and copper. Specifications Construction Material: Steel General Range: #36 (0.007″) – #0 (0.312″) Model Number: 950-202 Physical & Mechanical Properties Thickness (inches): 0.105 Regulatory Compliance Certificate of Conformance: View ×
