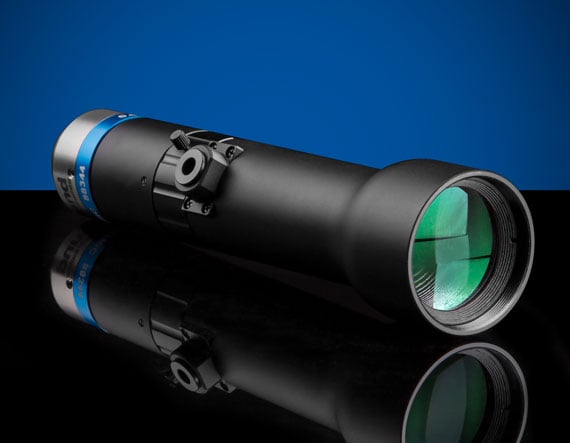

0.50X In-Line Illumination SilverTL Telecentric Lens

Product Details High Resolution f/6 Bi-Telecentric Lens with Inline Illumination Options Up to 7.5 MegaPixels, 2.8μm Pixel Size Sensors Up to 2/3″, C-Mount Telecentric Lens Magnification from 0.16X to 4X TECHSPEC SilverTL Telecentric Lenses are ideal for both on-line and off-line machine vision production applications that require accurate measurements. These lenses combine high-quality optics with a simplified non-focusing mechanical design and an adjustable iris with a locking set screw. These lenses are designed for metrology and gauging applications. TECHSPEC SilverTL Telecentric Lenses also offer inline illumination options for maximum versatility. Each lens also features a standard front filter thread for use with color filters , polarizers , protective windows , and illumination adapters for LED or fiber-optic ring lights. Note: Mounting brackets are available that fit the 30mm diameter mounting surface. Specifications General Product Family: SilverTL Series Stock No. of Mounting Clamp: #56-870 Sold Separately Type: Telecentric Lens Type of Illumination: In-Line Illumination Physical & Mechanical Properties Iris Option: Variable Length (mm): 156.20 Length excluding Threads (mm): 156.20 Maximum Diameter (mm): 40.00 Weight (g): 233 Construction: Anodized Aluminum Optical Properties Horizontal Field of View, 1/1.8″ Sensor: 14.4mm Horizontal Field of View, 1/2″ Sensor: 12.8mm Horizontal Field of View, 1/3″ Sensor: 9.6mm Maximum Image Circle (mm): 9.00 Numerical Aperture NA, Object Side: 0.041 Working Distance Tolerance (mm): ±3 Resolution, Image Space MTF @ f/10: >40% @ 40 lp/mm Number of Elements (Groups): 7 (6) Typical Telecentricity @ 588nm (°): <0.012 Typical Distortion @ 588nm (%): <0.200 Primary Magnification PMAG: 0.5X Telecentric Lens Magnification: 0.50 Working Distance (mm): 120.00 FOV @ Max Sensor Format, H x V (mm): 14.4 x 10.8 Aperture (f/#): f/6 - f/22 Coating: 425 - 675nm BBAR Depth of Field (mm): ±2.1 at f/10 (20% @ 20 lp/mm) Magnification: 0.5X Lens Wavelength Range: VIS Sensor Maximum Sensor Format: 1/1.8" Pixel Size (μm): 2.74 Threading & Mounting Filter Thread: M37 x 0.75 (Female) Mount: C-Mount Regulatory Compliance Certificate of Conformance: View ×
