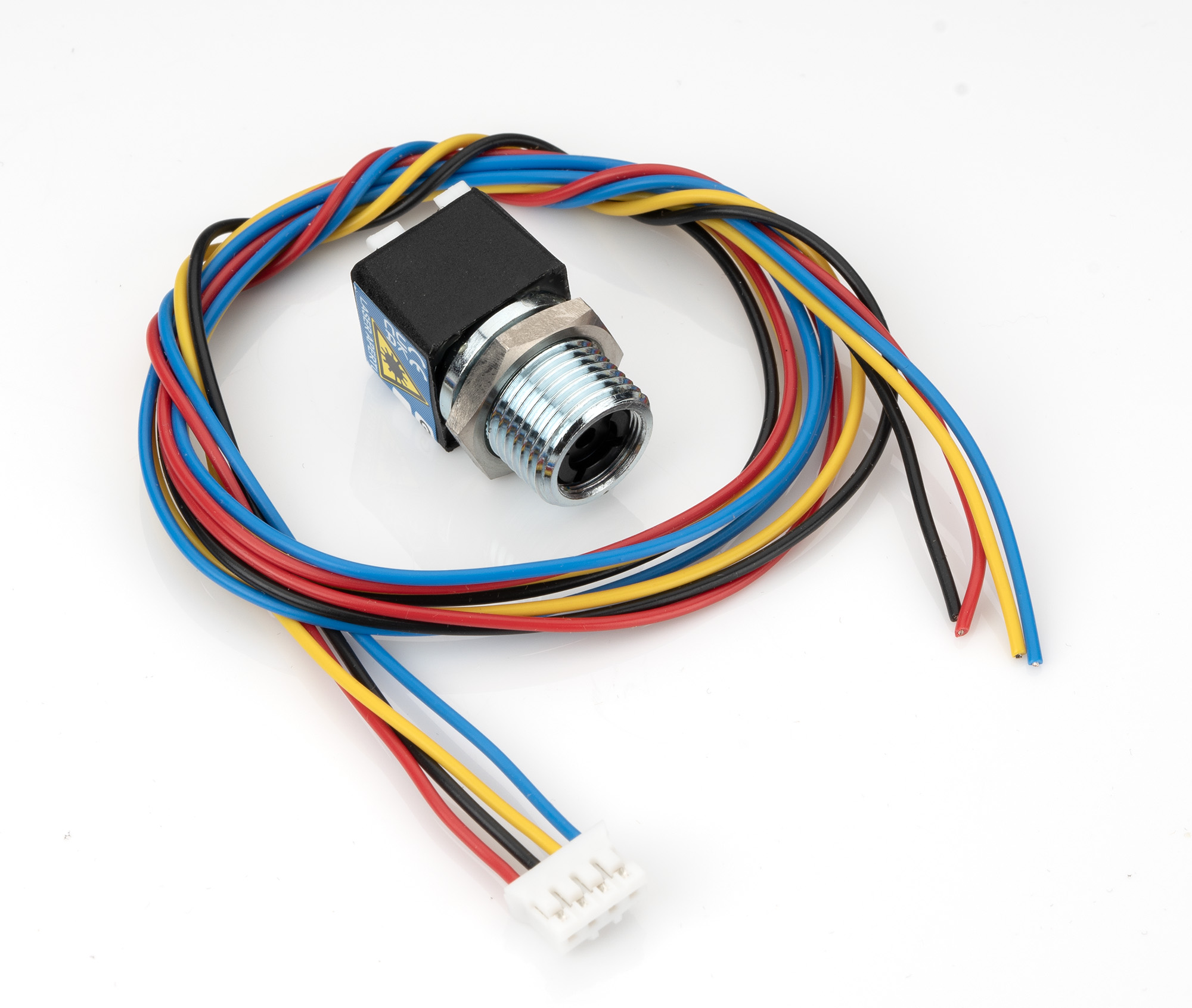

0.8mW, 670nm, C2 Gated Cameo Laser

Product Details TTL Modulation up to 100kHz Compact 24 x 14 x 14mm Housing with M12 x 1 Threaded Barrel 635, 650, and 670nm Wavelength Options Compact Gated Industrial Laser Diode Modules provide a high quality, cost effective OEM solution for a range of industrial applications. Featuring a gated CW laser output, these modules can achieve switching speeds up to 100kHz through the control input or they can be operated from low power TTL and microprocessors to achieve a simple, slow speed ON/OFF switching. An electrically isolated compact 24 x 14 x 14mm housing and M12 x 1 threaded barrel facilitates efficient cooling through good thermal contact and allows for easy integration into existing OEM laser systems. Compact Gated Industrial Laser Diode Modules are ideal for a wide range of industrial OEM applications including machine vision, inspection, positioning, and alignment. When operated within the appropriate temperature range (-10 to 55°C), these lasers can achieve long lifetimes with minimum mean time between failures (MTTF) ranging from ≥30,000 to ≥120,000 hours depending on wavelength. Note: Interchangeable optics only compatible with A series Gated Cameo Lasers #72-688 and #72-689. C2 series lasers, #72-684 and #72-686, feature a fixed 2mm aperture lens, and S series lasers, #72-685 and #72-687, feature a fixed standard collimating lens that produces a beam size of 5 x 1.5mm. Specifications General Mean Time To Failures MTTF @ 25° (hours): ≥120,000 Type of Laser: Diode Laser Class – CDRH: II Physical & Mechanical Properties Dimensions (mm): 14 x 14 Weight (g): 15 Housing Length (mm): 24 Optical Properties Wavelength (nm): 670.00 Beam Diameter (mm): 2 Beam Divergence (mrad): 0.35 Color: Red Focus Range (mm): 25mm – ∞ Electrical Output Power (mW): 0.8 Power Stability (%): ±1.5 Hardware & Interface Connectivity Output Type: Free Space – Fixed Lens, 2mm Aperture Connector: JST 4 Pin Input Voltage (V): 4.5 Environmental & Durability Factors Operating Temperature (°C): -10 to +55 Storage Temperature (°C): -40 to +85 Regulatory Compliance RoHS 2015: Compliant × Certificate of Conformance: View × Reach 240: Compliant ×
