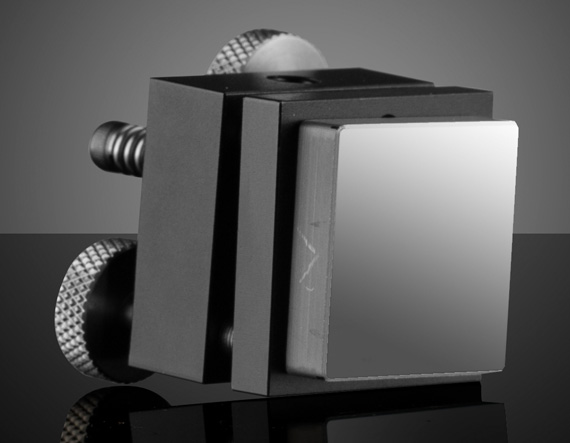

1.0″ Straight Mirror Mount with Mirror

Product Details 1.0” or 1.5” Square Mounting Surface Two Fine Adjustment Screws (64-Pitch) Allow for Tilting Models with Pre-Mounted λ/4 Mirror Available Straight or Angle Configuration Options Available Small Mirror Mounts are available with a 1.0” or 1.5″ square mounting surface. These optical mirror mounts feature two stainless steel fine-resolution (64-pitch) mounting screws that provide precise tilting of the mounting surface in two directions. These optical mirror mounts are suitable for mounting to most post mounts. Small Mirror Mounts are constructed of black anodized aluminum and each type has an option for an included fixed mirror. These mounts feature mounting holes in various sizes, including ¼-20 and 10-32. Specifications General Type: Adjustable – Tip-Tilt Type of Optics: Square or Rectangular Note: Fixed mirror included Type of Mount: 1.0″ Straight Physical & Mechanical Properties Weight (lbs): 0.1 Construction: Black Anodized Aluminum, Stainless Steel Fine Tilt Angle (°): 15 Resolution (inches): 0.015 Fine Tip Angle (°): 15 Adjustment Screw Pitch (inches): 0.015 Centerline Height (inches): 0.5 Pre-Mounted Mirror Size (mm): 22 x 22 Threading & Mounting Size of Compatible Optics (mm): 3.0 – 25.4 Compatible Post: ¼-20, 5/16, 10-32 Mounting Plate Size (inches): 1.0 Sq. Regulatory Compliance RoHS 2015: Compliant × Certificate of Conformance: View ×
