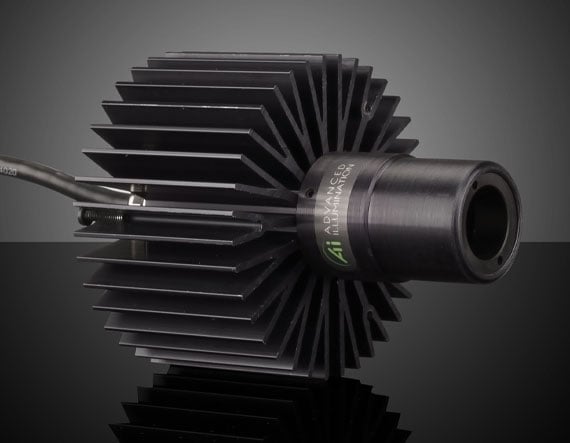

1.25″, Green 530nm, High Intensity Pattern Projecting Spot Light

Product Details Intense Output up to 2,000 Lux Includes Heat Sink for Thermal Management Optional Manual Intensity Adjustments ( #86-887 and #89-555 ) Recommended Compatible Reticles Also Available Advanced Illumination High Intensity Pattern Projecting Spot Lights offer clusters of high intensity LEDs up to 2,000 lux for focused, homogenous illumination. The spot lights are constructed with a large heat sink, improving thermal management to facilitate increased brightness while maintaining safe operating temperatures. For ease of integration, these LED light projectors are compatible with our full selection of 21mm diameter reticles , including crosshair, concentric circles, and net grid. Advanced Illumination High Intensity Pattern Projecting Spot Lights are compatible with 2/3” format C-Mount lenses and are ideal for machine vision inspection applications, such as edge detection, locating offsets, and assessing topography. Note : Requires 24V power supply #66-855 . Manual Intensity Adjustment #86-887 and #89-555 are recommended and sold separately. Specifications General Model Number: SL256-530IC LED Lifetime (hours): 50000 Type of Illumination: LED Illuminator Note: Optional Manual Intensity Adjustment #86-887 and #89-555 are Available Manufacturer: Advanced Illumination Geometry: Spot Light Illumination Mode: Constant Physical & Mechanical Properties Diameter (inches): 1.25 Weight (g): 413 Diameter of Compatible Reticle (mm): 20.8 Optical Properties Color: Green Wavelength (nm): 530 Electrical Minimum Input Current: 0.592 Hardware & Interface Connectivity Connector: Flying Leads Power Supply: Power Supply Required and Sold Separately: USA: #66-855 Europe: #66-855 Japan: #89-513 Korea: #33-773 China: #66-855 Length of Cable (m): 2 Environmental & Durability Factors Operating Temperature (°C): 0 – 50 Environmental Rating: IP50 Regulatory Compliance RoHS 2015: Exempt × Certificate of Conformance: View × Reach 233: Contains SVHC(s) ×
