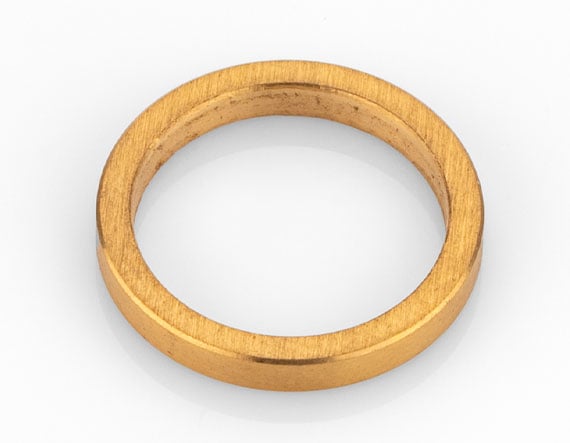

1.25mm Thick, C-Mount Brass Spacer Ring

Product Details Fit Over Male C, S, and T-Mount Threads Wide Range of Thicknesses Available for Accurate Spacing Spacer Ring Kits Available TECHSPEC C, S, and T-Mount Brass Spacer Rings fit over the male threads on our C, S, and T-Mount components, extending the overall length of the system. These spacer rings are ideal for making incremental adjustments to component spacing within an optical system. TECHSPEC C, S, and T-Mount Brass Spacer Rings are available in thicknesses ranging from 0.25mm to 2.0mm, ensuring that application specific spacing is available. Kits of C-Mount and S-Mount Spacer Rings with 2 of each size can be found under the “Accessories” tab for this product. These spacer rings can be combined in multiple configurations to achieve the desired spacing distance. Specifications General Function: Spacer Ring Physical & Mechanical Properties Outer Diameter (mm): 29.0 Thickness (mm): 1.25 Inner Diameter (mm): 25.5 Threading & Mounting Thread Type: C-Mount Regulatory Compliance RoHS 2015: Compliant × Certificate of Conformance: View × Reach 235: Compliant ×
