1/2”,5mm,F1.4,C-mount,ViSWIR Singleband

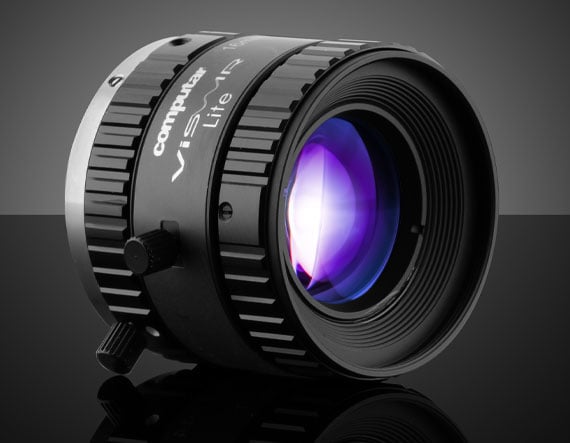

Product Details Outstanding Cost to Performance Ratio from the VIS to SWIR 1.5 MegaPixels, 1/2’’ or 2/3’’, C-Mount Focal Lengths Ranging from 5 – 50mm Computar ViSWIR Lite Lenses are compact lenses that deliver outstanding cost-performance for single-wavelength lighting and narrow-band imaging. Utilizing a multilayer coating that absorbs specific wavelengths to minimize adverse lighting effects, these lenses ensure precise imaging is achieved. The broadband anti-reflection coating offers high and stable transmission across a wide wavelength range from 400nm to 1,700nm. Computar ViSWIR Lite Lenses are available in 1/2’’ and 2/3’’ sensor formats, an easily integratable C-mount design, and focal lengths that range from 5 to 50mm. These lenses are ideal for non-visible range imaging in applications across Agricultural, Medical, and Remote Sensing industries. Specifications General Product Family: Computar ViSWIR Lite Lenses Model Number: H0514-VSW Imaging Lens Type: Fixed Focal Length SWIR Lens Physical & Mechanical Properties Iris Option: Variable Length (mm): 45.50 Maximum Diameter (mm): 44.5 Outer Diameter (mm): 32.00 Weight (g): 102.0 Maximum Rear Protrusion (mm): 7.00 Maximum Length (mm): 45.5 Optical Properties Horizontal Field of View @ Max Sensor Format: 65.5° Horizontal Field of View, 1/2″ Sensor: 65.5° (H6.4) Horizontal Field of View, 1/4″ Sensor: 35.3° (H3.2) Maximum Image Circle (mm): 8.20 Wavelength Range (nm): 400 – 1700 Focal Length FL (mm): 5.00 Working Distance (mm): 100 – 900 FOV @ Max Sensor Format, H x V (mm): Horizontal: 65.5° Vertical: 51.4° Diagonal: 76.7° Aperture (f/#): f/1.4 Back Focal Length BFL (mm): 10.8 Entrance Pupil Position (mm): Measured from the first lens surface on the object side. Positive values indicate direction toward the image side; negative values indicate direction toward the object side. 14.99 Object Space Principal Plane (mm): Measured from the first lens surface on the object side. Positive values indicate direction toward the image side; negative values indicate direction toward the object side. 20.25 Image Space Principal Plane (mm): Measured from the last lens surface on the image side. Positive values indicate direction toward the image side; negative values indicate direction toward the object side. 5.08 Maximum Distortion (%): -0.48 Exit Pupil Position (mm): Measured from the last lens surface on the image side. Positive values indicate direction toward the image side; negative values indicate direction toward the object side. 147.4307 Lens Wavelength Range: VIS-SWIR Wavelength: VIS, SWIR Sensor Optimized Sensor Format: 1/2″ Maximum Sensor Format: 1/2″ Resolution (Megapixels): 1.50 Threading & Mounting Filter Thread: M43 x 0.75 Mount: C-Mount Regulatory Compliance Certificate of Conformance: View ×
