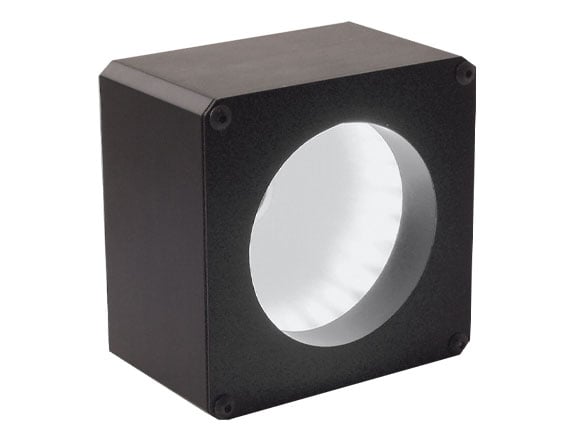

1.95″ LED Diffuselite, White

Product Details Ideal for Illuminating Curved Surfaces Well Suited for Inspecting Small, Specular Objects Variable Intensity and Strobed Options Advanced Illumination Diffuselite LED Illuminators are ideal for inspecting small, reflective objects. LED intensity can be varied through the in-line potentiometer, and the projected light distribution edge to edge is ±10%. The 3.35″ and 6.35″ models feature high-brightness LEDs. The strobed models’ flash duration is dependent on a trigger signal or potentiometer setting. The duration of the strobe can be adjusted from 30 – 300μs via a knob located in the back of the unit. The trigger input signal of the Advanced Illumination Diffuselite LED Illuminator is CMOS/TTL compatible. The maximum trigger frequency is 30 Hz. Note: Required 24V power supply #66-855 . Accessories for Advanced Illumination products are available and sold separately. Specifications General Model Number: DL2230-WHI-IC LED Lifetime (hours): 50,000 Number of LEDs: 30.00 Number of Channels: 1.00 Type of Illumination: LED Illuminator Note: Optional Manual Intensity Adjustment #86-887 and #89-555 are Available Manufacturer: Advanced Illumination Geometry: Diffuse Illumination Mode: Constant Physical & Mechanical Properties Height (mm): 49.00 Dimensions (mm): 71.9 L x 71.9 W Field Coverage (mm): 50.00 Optical Properties Color: White Working Distance (mm): 13 – 50 Wavelength Tolerance (nm): N/A Light Distribution (%): ±10 Edge to Edge (Dependent on Working Distance) Electrical Maximum Trigger Frequency (Hz): 30.00 Hardware & Interface Connectivity Connector: Flying Leads Power Supply: Power Supply Required and Sold Separately: USA: #66-855 Europe: #66-855 Japan: #89-513 Korea: #33-773 China: #66-855 Environmental & Durability Factors Operating Temperature (°C): 0 to 65 Regulatory Compliance RoHS 2015: Compliant × Certificate of Conformance: View × Reach 233: Contains SVHC(s) ×
