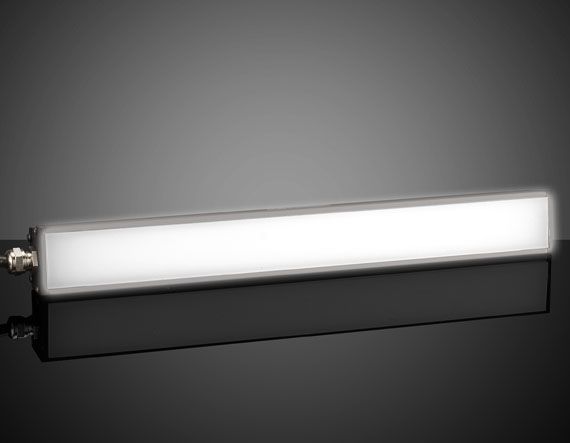

10″, Blue 455nm, Medium Intensity Linear Backlights

Product Details Intense, Diffuse Output up to 226,000 Lux Full Range of Wavelengths Available UltraSeal Washdown Backlights for Harsh Environments Also Available Optional Manual Intensity Adjustments ( #86-887 and #89-555 ) Recommended Advanced Illumination Medium Intensity Linear Backlights provide intense, diffuse illumination up to 226,000 Lux. These backlights are available in a full range of wavelengths for seamless system integration. Advanced Illumination Medium Intensity Linear Backlights are ideal for applications such as line scan and object silhouetting. IP69K certified Advanced Illumination UltraSeal Washdown Backlights for harsh environment applications are available. Note : Requires 24V power supply #66-855 . Manual Intensity Adjustment #86-887 and #89-555 are recommended and sold separately. 3D-Printable Mount Files Bar or Line Light Configuration Download Now Designed for use with the Articulating Arm Mounting Systems , these 3D-printed mounts allow easy positioning of lights in brightfield or darkfield setups. The design is based on mounting illumination to ¼-20″ breadboards or into 80/20 extrusion systems, but can be adapted based on user needs. Mounts are available for ring, bar, line, and inline spot lights. Application Note Illumination Mounts for Machine Vision Applications Read Video Assembly of 3D Printed Mounts for Common Illumination Geometries Watch Specifications General Model Number: BL31310-455 LED Lifetime (hours): 50000 Type of Illumination: LED Illuminator Note: Optional Manual Intensity Adjustment #86-887 and #89-555 are Available Manufacturer: Advanced Illumination Geometry: Backlight Illumination Mode: Constant Physical & Mechanical Properties Dimensions (mm): 267.2 x 32.2 x 21.7 Weight (g): 286 Active Area (mm): 255.2 x 25 Optical Properties Color: Blue Wavelength (nm): 455 Electrical Minimum Input Current: 0.8A Hardware & Interface Connectivity Connector: Flying Leads Input Voltage (V): 24V Power Supply: Power Supply Required and Sold Separately: USA: #66-855 Europe: #66-855 Japan: #89-513 Korea: #33-773 China: #66-855 Environmental & Durability Factors Operating Temperature (°C): 0 – 50 Environmental Rating: IP50 Regulatory Compliance RoHS 2015: Exempt × Certificate of Conformance: View × Reach 233: Contains SVHC(s) ×
