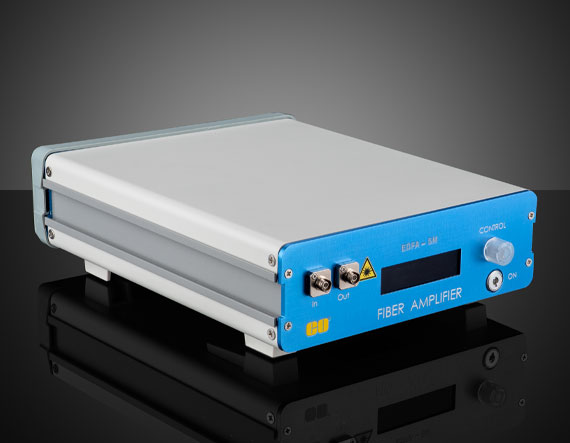

>100mW, SM Fiber, EDFA

Product Details Erbium (EDFA) or Ytterbium (YDFA) Doped Fiber Amplifier Options 1530 – 1565nm or 1025 – 1075nm Wavelength Options Manual and Digital (USB) Control EDFA and YDFA Fiber Amplifiers are turnkey, bench-top Erbium (Er) or Ytterbium (Yb) doped fiber amplifiers operating within wavelength ranges of 1530 – 1565nm or 1025 – 1075nm, respectively. These amplifiers offer high-gain, low-noise amplification optimized for C-band and L-band optical communication systems with an up to >100mW output power. Able to be controlled directly from the front panel or via USB connection allowing for increased flexibility, these amplifiers are available in single mode (SM) or polarization maintaining (PM) configurations. EDFA and YDFA Fiber Amplifiers offer highly functional and intuitive control features enabling users to deploy the amplifier in various environments including research and development and automated manufacturing floors. These amplifiers are ideal for dense wavelength division multiplexing (DWDM), optical sensing, and fiber telecommunications. Specifications Fiber Cable Type: SM Fiber Connector Type: FC/APC Compatible, 2.0 mm Narrow Key Fuse Type: 500 mA IEC60127-2/III (250 VA, Slow Blow Type “T”) Input Power (W): 20 VA (Max) General Note: USB Type-A to Type-B Cable Laser Class – IEC: 3B Physical & Mechanical Properties Dimensions (inches): 11 x 3 x 8 Weight (lbs): 2 lbs Optical Properties Wavelength Range (nm): 1530 – 1565 Polarization: Random Polarization Dependent Gain: <0.2 dB Electrical Gain (dB): > 30 dB Noise Level: < 5 dB (1550 nm) Max Input Power (dBm): 10 dBm Max Output Power: 23 dBm Output Power (mW): > 100 mW Input/Output Isolation: >30 dB Return Loss (dB): > 50 dB Power Stability (%): <±2% Over 24 Hours (After 15 Minute Warm-Up, Input Voltage (V): 100 - 240 VAC, 50 - 60 Hz Hardware & Interface Connectivity Connector: USB Type-B Connector Power Supply: IEC Connector Computer Interface: USB 2.0 Compatible Interface: Optical Encoder with Knob Interlock: 2.5 mm Mono Jack Regulatory Compliance Certificate of Conformance: View ×
