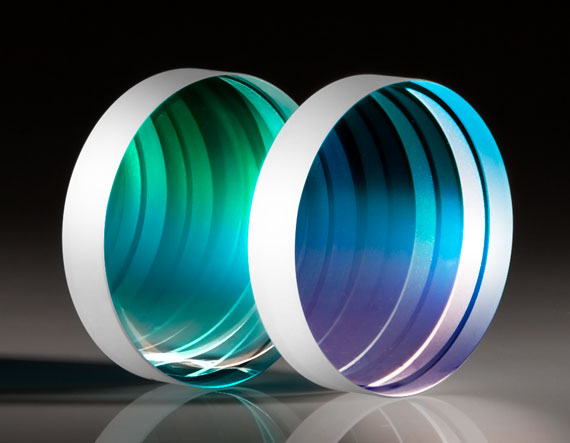

1025-1095nm 25.4mm Dia. Laser Non-Polarizing Beamsplitter

Product Details High Laser Damage Thresholds Excellent Surface Quality Insensitive to Input Beam’s Polarization State Laser Line Non-Polarizing Plate Beamsplitters are ideal for use in demanding laser applications where polarization control is critical. Laser Line Non-Polarizing Plate Beamsplitters are coated with dielectric layers to increase system performance while maintaining high laser damage thresholds and the polarization state of the input beam. The 1025nm – 1095nm coating is designed for some of the industry’s most popular pulsed lasers, including Nd:YAG, Yb:KGW, and Yb:YAG. Specifications General Type: Non-Polarizing Beamsplitter Physical & Mechanical Properties Bevel: <0.25mm x 45° Clear Aperture (%): >90 Construction: Plate Diameter (mm): 25.40 +0.0/-0.1 Parallelism (arcmin): <1 Thickness (mm): 5.00 ±0.1 Optical Properties Angle of Incidence (°): 45 Coating: Back Surface: AR Coating Coating Specification: R abs <0.75% @ 1025 - 1095nm Polarization Separation (Rs-Rp) (%): <5 Reflection/Transmission Ratio (R/T): 50/50 Reflectivity (Rs%, Rp%): 50 ±5 Substrate: Many glass manufacturers offer the same material characteristics under different trade names. Learn More Fused Silica (Corning 7980) Surface Flatness (P-V): λ/8 Surface Quality: 20-10 Wavelength Range (nm): 1025 - 1095 Damage Threshold, By Design: Damage threshold for optical components varies by substrate material and coating. Click here to learn more about this specification. >1 J/cm 2 @ 1064nm, 10ns Transmitted Wavefront Distortion: λ/8 Environmental & Durability Factors Durability: MIL-C-675A Regulatory Compliance RoHS 2015: Compliant × Certificate of Conformance: View × Reach 247: Compliant ×
