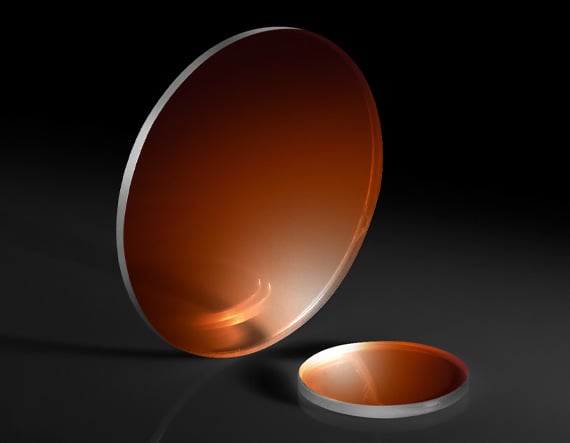

10mm Dia., 1mm Thick, Uncoated, Lithium Fluoride (LiF) Window

Product Details High Transmission from 150nm – 6μm Excellent Vacuum UV (VUV) Transmission Low Index of Refraction Lithium Fluoride (LiF) Windows provide high, flat transmission from 150nm to 6μm. Lithium fluoride has excellent transmission in the vacuum ultraviolet (VUV) wavelength range of 150 – 200nm. Lithium fluoride also has a low index of refraction, allowing these windows to be used without an anti-reflection (AR) coating. Lithium Fluoride (LiF) Windows are ideal for use as UV transmission windows in spectroscopy applications, as a diffracting element in X-ray spectrometry, or as infrared windows for thermal imaging applications. Note: Lithium fluoride is sensitive to thermal shock and is attacked by atmospheric moisture at temperatures above 400°C. Specifications General Type: Protective Window Type of Window: Crystal Physical & Mechanical Properties Clear Aperture CA (mm): 9.00 Diameter (mm): 10.00 +0.00/-0.10 Thickness (mm): 1.00 ±0.10 Parallelism (arcmin): <3 Bevel: Protective as needed Clear Aperture (%): 90 Edges: Fine Ground Poisson's Ratio: 0.33 Young's Modulus (GPa): 64.97 Knoop Hardness (kg/mm 2 ): 102.00 Optical Properties Coating: Uncoated Substrate: Many glass manufacturers offer the same material characteristics under different trade names. Learn More Lithium Fluoride (LiF) Index of Refraction (n d ): 1.392 Surface Quality: 60-40 Abbe Number (v d ): 97.29 Axis Orientation: Random Wavelength Range (nm): 150 - 6000 Surface Flatness (P-V): λ/2 @ 632.8nm Material Properties Density (g/cm 3 ): 2.64 Coefficient of Thermal Expansion CTE (10 -6 /°C): 37 Regulatory Compliance Certificate of Conformance: View ×
