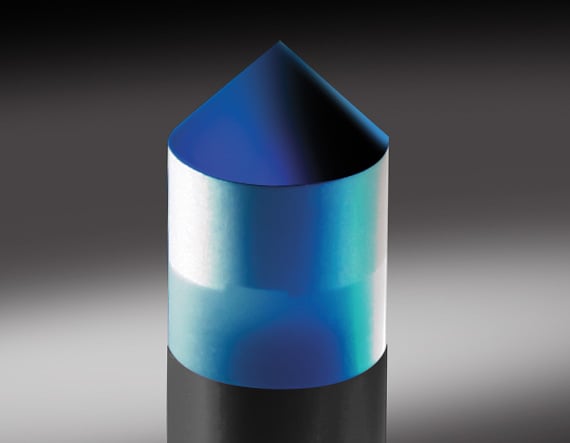

10mm Diameter, Aluminum Coated, Cone Mirror

Product Details Ideal for 360° Applications ±6 Arcmin Apex Angle Tolerance Protected Aluminum Coating TECHSPEC Cone Mirrors are ideal for laser and imaging systems, and for applications requiring 360° illumination. The mirrors feature a ±6 arcmin apex angle tolerance. The cone mirrors have a polished cone top and base, and a fine ground circumference. TECHSPEC Cone Mirrors are coated in protected aluminum (400-700nm). These mirrors have a 10mm diameter. Specifications General Type: Specialty Mirror Note: Coating on Cone Surface Physical & Mechanical Properties Diameter (mm): 10.00 +0.00/-0.05 Length (mm): 10.00 Total Length (mm): 15.0 Length Tolerance (mm): ±0.1 Optical Properties Substrate: Many glass manufacturers offer the same material characteristics under different trade names. Learn More N-BK7 Coating: Protected Aluminum (400-700nm) Coating Type: Metal Coating Specification: R avg >85% @ 400 – 700nm Wavelength Range (nm): 400 – 700 Surface Quality: 40-20 Angle Tolerance (arcmin): ±6 Regulatory Compliance RoHS 2015: Compliant × Reach 219: Compliant × Certificate of Conformance: View ×
