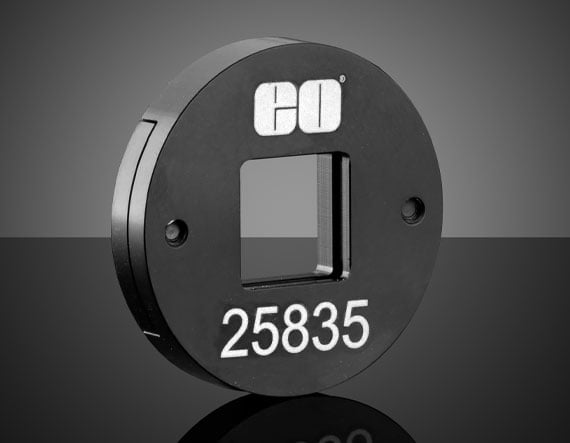

10mm Square Microlens Array Mount, 0.9mm Thick

Product Details Easily Integrate Microlens Arrays into Optical Applications Compatible with Various 25.4mm Outer Diameter Circular Optical Mounts Includes Allen Wrench and M2 Screws Microlens Array Mounts are designed to facilitate integration of 10mm square Microlens Arrays into optical applications. With an outer diameter of 25.4mm (1”), these mounts are specifically designed to be inserted into our C, S, and T-Mount Circular Optic Mounts , SM Lens Tubes , and our Compact Mirror and Lens Mounts. Microlens Array Mounts are constructed from black anodized aluminum and include an Allen wrench and two M2 Screws which secure the array within the mount. For permanently mounting a Microlens Array into a Microlens Array Mount, we recommend using Norland Optical Adhesive , NOA 61 , or NOA 81 ; curing the adhesive can be achieved using our range of UV Curing products . Specifications General Type: Fixed Type of Optics: Square Physical & Mechanical Properties Clear Aperture CA (mm): 9.2 x 9.2 Outer Diameter (mm): 25.4 Construction: Black Anodized Aluminum Min. Thickness of Compatible Optics (mm): 0.90 Max. Thickness of Compatible Optics (mm): 0.90 Threading & Mounting Size of Compatible Optics (mm): 10.00 Regulatory Compliance RoHS 2015: Compliant × Certificate of Conformance: View × Reach 233: Compliant ×
