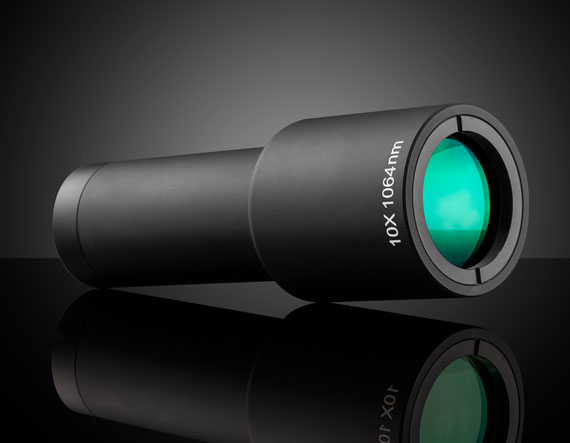

10X, 1064nm Scorpii Nd:YAG Beam Expander

Product Details AR Coated for Nd:YAG Laser Wavelengths: 355nm, 532nm, and 1064nm Fixed Magnifications Available from 2X to 10X Designed for OEM Integration without Divergence Adjustment TECHSPEC Scorpii Nd:YAG Beam Expanders are designed for beam expansion applications such as laser engraving and material processing. These beam expanders feature AR coatings and high transmissions. AR coated for the Nd:YAG laser wavelengths 355nm, 532nm, and 1064nm, these beam expanders are available in multiple fixed magnifications from 2X to 10X with M22 x 0.75 threading. TECHSPEC Scorpii Nd:YAG Beam Expanders are a cost-effective solution for system integration. Ideal for OEM quantities, these beam expanders can quickly meet prototyping and application timelines. TECHSPEC Scorpii Nd:YAG Beam Expander Kits are also available. For HeNe laser applications, TECHSPEC Arcturus HeNe Beam Expanders are available. For applications where rotating optics are acceptable, the TECHSPEC Vega Laser Line Beam Expanders and TECHSPEC Vega Broadband Beam Expanders are available. For higher precision applications where sliding optics are necessary, please see our TECHSPEC Draconis Nd:YAG Laser Line Beam Expanders or TECHSPEC Draconis Broadband Beam Expanders . For broadband or ultrafast applications, TECHSPEC Canopus Reflective Beam Expanders are available. 532nm versions are compatible with popular 530nm laser applications, and 1064nm versions are ideal for use with laser applications at 1060nm, 1070nm, and 1075nm. Specifications General Type: Beam Expander Style: Fixed Magnification Physical & Mechanical Properties Length (mm): 114.20 Weight (g): 164 Housing Diameter (mm): 29.95/39.95 Optical Properties Entrance Aperture (mm): 3.5 Exit Aperture (mm): 27 Expansion Power: 10X Substrate: Many glass manufacturers offer the same material characteristics under different trade names. Learn More Optical Glass Transmission (%): >96 (nominal) Angle of Incidence (°): 0 Coating: NIR II (750-1550nm) Design Wavelength DWL (nm): 1064 Transmitted Wavefront, P-V: <λ/4 @ 1064nm for Input Beam ≤1.5mm (by design) Wavelength Range (nm): 1064 Coating Specification: R abs ≤1.5% @ 750 - 800nm R abs ≤1.0% @ 800 - 1550nm R avg ≤0.7% @ 750 - 1550nm Divergence Adjustment: None Threading & Mounting Mounting Threads: M22 x 0.75 Regulatory Compliance RoHS 2015: Compliant × Certificate of Conformance: View × Reach 253: Compliant ×
