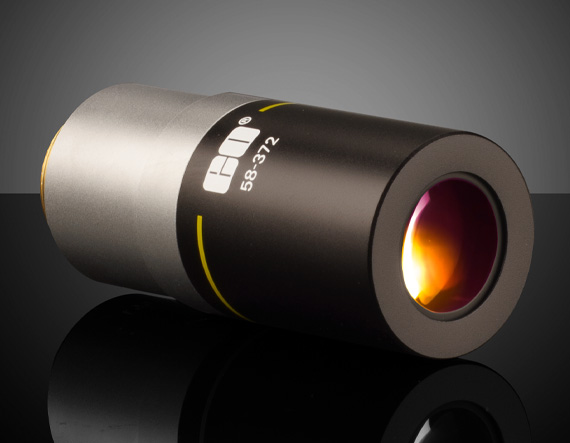

10X EO HR Infinity Corrected Objective

Product Details High Resolving Power Designed for use in Zoom Lens Systems Features Mitutoyo Standard M26 x 36 TPI Threads EO High Resolution Infinity Corrected Objectives are designed for high resolution over a small field of view. These objectives feature Mitutoyo standard M26 x 36 TPI threads and a 95mm parfocal length which allows them to be used interchangeably with Mitutoyo microscopes and accessories. While usable with Mitutoyo microscopes and accessories, these objectives perform best when used in a zoom lens system. EO High Resolution Infinity Corrected Objectives feature near-diffraction limited on axis performance. For longer working distance objectives that can be used in Mitutoyo systems, see our EO Infinity Corrected Long Working Distance Objectives . Specifications General Model Number: 28-20-45-000 Compatible Tube Lens Focal Length (mm): Focal Length: 200mm Type: Microscope Objective Style: Infinity Corrected Physical & Mechanical Properties Length excluding Threads (mm): 76.00 Maximum Diameter (mm): 34 Weight (g): 205.00 Optical Properties Horizontal Field of View, 1/2″ Sensor: 0.64mm Horizontal Field of View, 2/3″ Sensor: 0.88mm Field Stop Diameter (mm): 11.00 Focal Length FL (mm): 20.00 Magnification: 10X Numerical Aperture NA: 0.45 Resolving Power (μm): 0.74 Depth of Field (μm): 2.70 Working Distance (mm): 19.00 Wavelength Range (nm): 400 – 700 Parfocal Length (mm): 95 Immersion Liquid: N/A Threading & Mounting Mounting Threads: M26 x 36 TPI Environmental & Durability Factors Operating Temperature (°C): +23 ±5 Operating Humidity: 30 – 70% Regulatory Compliance RoHS 2015: Compliant × Certificate of Conformance: View × Reach 235: Compliant ×
