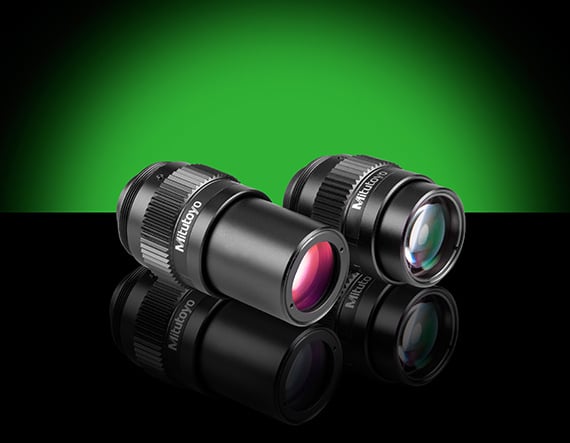

10X Mitutoyo Telecentric Objective

Product Details Long Working Distances Allow for Integration into Machine Vision Measurement Systems Compact Design and Long Parfocal Length Simplifies Mounting Tube Available for Use with C-Mount Cameras Aluminum Alloy Housing Mitutoyo Telecentric Objectives are ideal for high-resolution, high power machine vision measurement and optical gauging systems. With powers up to 100X, these objectives can be used for semiconductor production and inspection, and in metrology, quality assurance, and R&D laboratories. These objectives are constructed of an aluminum alloy housing. Mitutoyo Telecentric Objectives have a compact design and a long parfocal length that simplifies mounting. They are easily integrated into C-Mount imaging systems with our Mitutoyo C-Mount Camera Tube #56-992 . Edmund Optics is the main source for Mitutoyo Objectives. Place your orders now for these in demand quality products. Specifications General Model Number: 375-039 Type: Microscope Objective Style: Finite Conjugate Manufacturer: Mitutoyo Note: Image is formed 280mm from specimen (170mm from the mounting flange) Physical & Mechanical Properties Length (mm): 59.00 Length excluding Threads (mm): 59.00 Maximum Diameter (mm): 30 Weight (g): 95 Optical Properties Horizontal Field of View, 1/2″ Sensor: 0.64mm Horizontal Field of View, 2/3″ Sensor: 0.88mm Focal Length FL (mm): 17.50 Aperture (f/#): NA 0.21 Magnification: 10X Numerical Aperture NA: 0.21 Resolving Power (μm): 1.31 Depth of Field (μm): 6.20 Field of View, 18 Diameter Field Eyepiece (mm): 1.8 Field of View, 24 Diameter Field Eyepiece (mm): 2.4 Working Distance (mm): 51 Wavelength Range (nm): 435 – 655 Parfocal Length (mm): 110 Immersion Liquid: N/A Maximum Image Circle (mm): 11.00 Sensor Maximum Sensor Format: 2/3″ Threading & Mounting Mount: M26 x 36 TPI Mounting Threads: M26 x 36 TPI Filter Thread: N/A Environmental & Durability Factors Operating Temperature (°C): +5 to +40 Operating Humidity: 20 – 80% Regulatory Compliance RoHS 2015: Exempt × Certificate of Conformance: View × REACH 241: Contains SVHC(s) ×
