110V AC, 10″ Hg Vacuum System

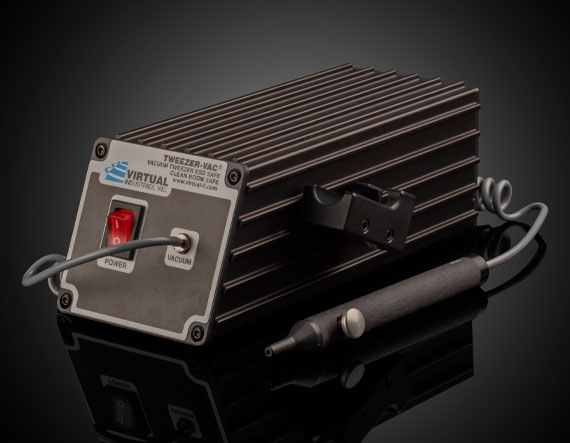

Product Details 10″ and 15″ Hg Models ESD-Safe Ideal for Assembly Work with Small Optical Parts These compact, vacuum handling tools will pick-up most of the surface mount, optical, and electrical components used in today’s assemblies. The long life diaphragm vacuum pump generates six inches of mercury, and the precision pump/motor model gives more than fifteen inches for extra power. Pen Holder on side; 15″ Hg series handle has auto-off feature when pen in-place. Features include: quiet operation, 5 ft of coiled static dissipative hose, set of 9 static dissipative black non-marring tips ( #57-641 ), vacuum pick-up handle (5.25″ L x 0.5″ Dia), no-skid feet, and black anodized case. Additional features for 15″ Hg: 12V power supply, auto on/off, variable air-flow control, ESD connection on rear, and Hand or Foot switch options for pick & place operation. 9 pc Tip (probe/cup) Kits include (cup OD size): 3/8″, ¼”, and 1/8″ (one each bent and straight probes), ½” straight probe, and 3/16″ and 3/32″ bent probes. #57-641 contains static dissipative tips, and #57-642 contains ESD-Safe (Conductive) tips. Specifications Physical & Mechanical Properties Dimensions (inches): 7.25 x 3 x 2.5 Maximum Suction (Hg): 10″ Hardware & Interface Connectivity Power Requirement: 110 V AC Regulatory Compliance Reach 191: Compliant × RoHS 2015: Compliant × Certificate of Conformance: View ×
