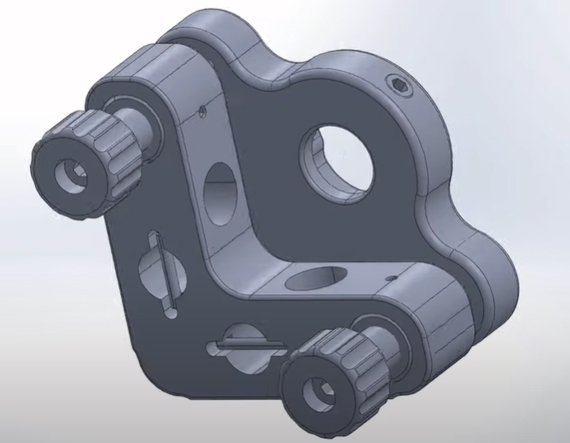

12.5/12.7mm Optic Dia., E-Series Kinematic Mount

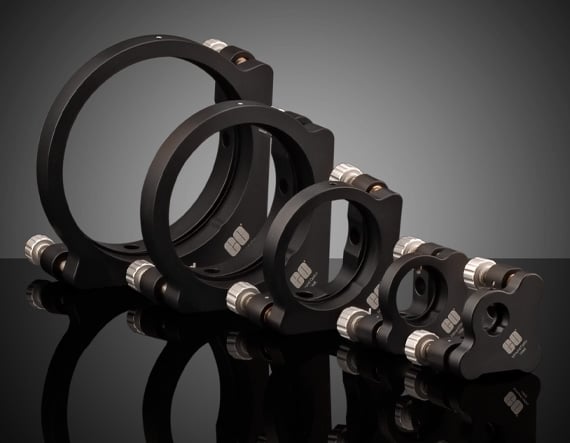

Product Details Essential Mount for Experiments and OEM System Economic Price 0.5”- 4.0” Dia. Versions Available M6 x 0.25 (101.6 TPI) Adjustment Screws E-Series Kinematic Optical Mirror Mounts offer many high value features essential for applications in R&D, prototyping, and system integration. The mounts are offered with 2 screws for tip and tilt optical adjustment and alignment (±3.5°). The M6 x 0.25 (101.6 TPI) adjustment screws provide smooth movement and can be driven by hand or by Allen key (2mm key size). The adjustment screw knobs are removable to create a more compact form factor. E-Series Kinematic Optical Mirror Mounts feature mounting holes with both a counterbore designed to accommodate M4 or 8-32 mounting hardware, and M6 x 1.0 internal threads for increased mounting versatility and direct compatibility to TECHSPEC Stainless Steel Mounting Posts and Pedestal Posts . Specifications General Type: Adjustable – Tip-Tilt Type of Optics: Circular Number of Adjustment Screws: 2 Physical & Mechanical Properties Clear Aperture CA (mm): 10 Construction: Aluminum Plates, Stainless Steel Screws, and Brass Thread Bushings Fine Tilt Angle (°): ±3.5 Fine Tip Angle (°): ±3.5 Adjustment Screw Pitch (mm): 0.25 1″ Optical Axis Height: Yes Min. Thickness of Compatible Optics (mm): 2 Optical Axis Height (mm): 25.40 Threading & Mounting Size of Compatible Optics (mm): 12.5 – 12.7 Compatible Post: M6 x 1.0, M4 x 0.7, 8-32 Regulatory Compliance RoHS 2015: Compliant × Certificate of Conformance: View × Reach 247: Compliant ×
