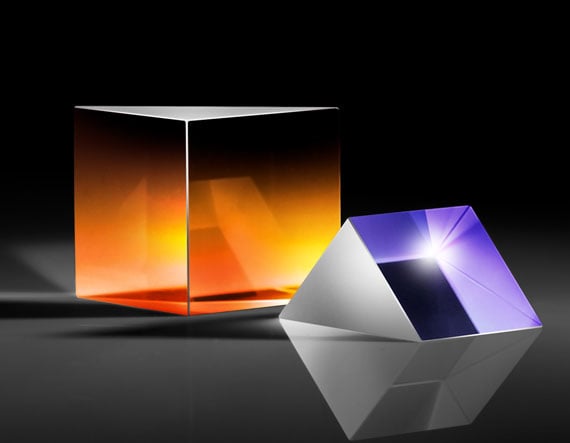

12.5mm λ/20, 532nm V-Coat, Nd:YAG Right Angle Prism

Product Details λ/20 Surface Flatness <0.25% Reflection for Nd:YAG Applications 5 - 25mm Sizes Available TECHSPEC Nd:YAG Laser Line λ/20 Fused Silica Right Angle Prisms offer a combination of precision surface flatness and guaranteed laser damage threshold AR coatings. These prisms are ideal for beam steering with minimal wavefront distortion due to λ/20 surface flatness on all faces. A ±15 arcsecond angular tolerance ensures consistent alignment for volume integration. TECHSPEC Nd:YAG Laser Line λ/20 Fused Silica Right Angle Prisms are designed for transmission through the anti-reflection coated legs of the prism, resulting in a 90° turn in beam direction. A vertically integrated manufacturing process ensures these prisms are easily scaled for custom requests. Specifications General Type: Right Angle Prism Physical & Mechanical Properties Dimensional Tolerance (mm): +0.00/-0.10 Bevel: Protective as needed Clear Aperture (%): 90 Length of Hypotenuse (mm): 17.70 Length of Legs (mm): 12.50 Optical Properties Angle Tolerance (arcsec): ±15 Coating: Laser V-Coat (532nm) Design Wavelength DWL (nm): 532 Substrate: Many glass manufacturers offer the same material characteristics under different trade names. Learn More Fused Silica (Corning 7980) Surface Quality: 20-10 Pyramid Tolerance (arcmin): ±1 Image Orientation: Left-Handed Coating Specification: R abs <0.25% @ 532nm Surface Flatness (P-V): λ/20 Damage Threshold, By Design: Damage threshold for optical components varies by substrate material and coating. Click here to learn more about this specification. 10 J/cm 2 , 20ns, 20 Hz Regulatory Compliance RoHS 2015: Compliant × Reach 209: Compliant × Certificate of Conformance: View ×
