12.5mm Square Broadband Polarizing Plate Beamsplitter

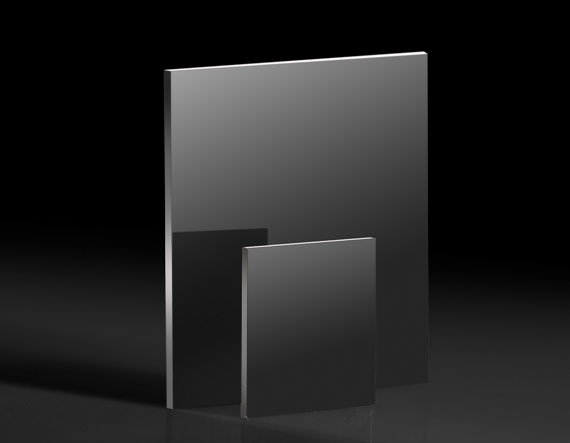

Product Details Wire Grid Technology Reflects S-Polarized Light, Transmits P-Polarized Light Ideal for High Temperature Environments Broadband Polarizing Plate Beamsplitters consist of a thin layer of aluminum MicroWires adhered to a glass window. These beamsplitters are an alternative and economical substitute for ruled or holographic wire grid polarizers . Providing exceptional image contrast and uniformity, these beamsplitters are ideal for applications requiring large angular apertures and high throughput. Broadband Polarizing Plate Beamsplitters reflect S-polarized light and transmit P-polarized light. The beamsplitters are offered in a 12.5 x 12.5mm or 25 x 25mm size. Note: MicroWires are very fragile. Handle these beamsplitters with care. If the operating temperature will exceed 100°C, turn the MicroWires surface away from the input beam for optimum performance. At temperatures below 100°C, the MicroWires can be oriented towards the input beam. Specifications General Type: Linear Polarizer Physical & Mechanical Properties Clear Aperture CA (mm): 8.5 x 8.5 Length (mm): 12.50 Dimensions (mm): 12.5 x 12.5 Thickness (mm): 0.70 ±0.07 Dimensional Tolerance (mm): ±0.2 Construction: Wire Grid Width (mm): 12.50 Optical Properties Angle of Incidence (°): 45 ±15 Substrate: Many glass manufacturers offer the same material characteristics under different trade names. Learn More Corning Eagle XG Surface Quality: 80-50 Coating Specification: Surface 2: R abs <2.0% @ 420 - 670nm Wavelength Range (nm): 420 - 700 Transmission Axis Tolerance (°): ±1 Material Properties Thermal Expansion: 31.7 x 10 -7 /°C Environmental & Durability Factors Operating Temperature (°C): -40 to +200 Regulatory Compliance RoHS 2015: Compliant × Reach 224: Compliant × Certificate of Conformance: View ×
