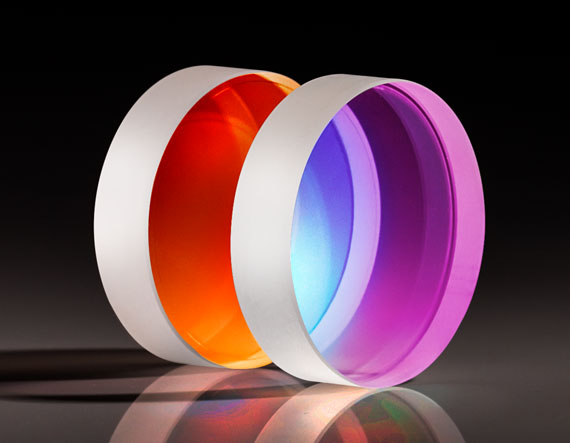

12.7mm 45°, 2μm Laser Line Mirror

Product Details Laser Damage Threshold >10 J/cm 2 @ 2µm, 10ns, 10Hz Designed for Holmium and Thulium Laser Sources λ/7 Surface Accuracy TECHSPEC High Performance 2µm Laser Mirrors are designed for use with Holmium (2100nm) and Thulium (1940nm) doped laser systems. These mirrors are ideal for medical, industrial, and metrology application spaces. The 2 micron wavelength regime is useful for surgical procedures as it can target discrete depth levels of tissue beneath the skin’s surface. TECHSPEC High Performance 2µm Laser Mirrors feature guaranteed laser damage thresholds >10 J/cm 2 and >99% reflectivity at 2 microns. Note: For more information on 2µm laser source applications, please see the Characteristics of 2µm Lasers . Specifications General Type: Laser Mirror Physical & Mechanical Properties Diameter (mm): 12.70 +0.0/-0.1 Thickness (mm): 6.35 ±0.2 Clear Aperture (%): 90 Parallelism (arcmin): <3 Back Surface: Compensating Coating Optical Properties Substrate: Many glass manufacturers offer the same material characteristics under different trade names. Learn More Fused Silica (Corning 7980) Coating: Laser Mirror (1900-2200nm) Coating Type: Dielectric Coating Specification: R s >99.9% @ 1900 – 2200nm R p >99.6% @ 1940 – 2100nm Wavelength Range (nm): 1900 – 2200 Design Wavelength DWL (nm): 2000 Reflection at DWL (%): 99.6 Reflectivity (Rs%): 99.6 Reflectivity (Rp%): 99.9 Angle of Incidence (°): 45 Surface Flatness (P-V): λ/7 @ 2000nm Damage Threshold, By Design: Damage threshold for optical components varies by substrate material and coating. Click here to learn more about this specification. >10 J/cm 2 @ 2000nm, 10ns, 10Hz Surface Quality: 40-20 Regulatory Compliance RoHS 2015: Compliant × Certificate of Conformance: View × Reach 235: Compliant ×
