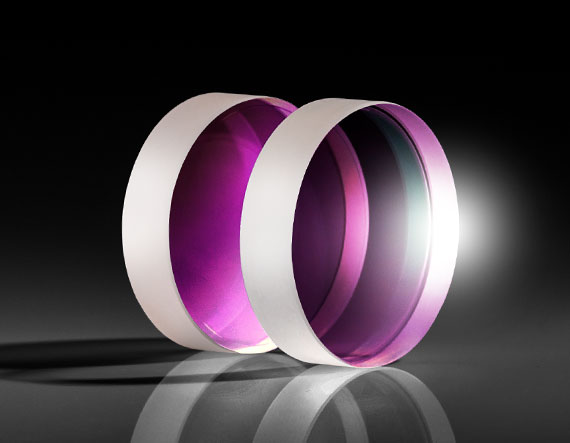

12.7mm Dia., 650 – 1350nm, Complementary Chirped Mirror Pair

Product Details Ideal for Chirped-Pulse Amplifier Systems and Ultra-Broadband Laser Oscillators Ultra-Broadband Design Supports Dispersion Compensation Negative GDD as Low as -60fs 2 and High Reflectivity (>99%) at 600 – 950nm or 650 – 1350nm UltraFast Innovations (UFI) Ultra-Broadband Complementary Chirped Mirror Pairs are designed to provide dispersion compensation for ultrafast pulses. The matched mirrors feature out-of-phase group delay dispersion (GDD) oscillations leading to a near-constant GDD performance with minimal oscillations. The broadband coating design covers the most common ultrafast laser lines, including Ti:sapphire and Yb:doped fiber, providing negative GDDs as low as -60fs 2 and average reflectance of >99% (p-polarization) at 600 – 950nm or 650 – 1350nm. The narrow angles of incidence (AOI) allows many reflections of the ultrafast pulse to effectively compensate for dispersion effects. UFI Ultra-Broadband Complementary Chirped Mirror Pairs are ideal for dispersion compensation in ultrafast laser applications, including chirped-pulse amplifier systems and ultra-broadband laser oscillators. Please contact us for custom mirror pairs with different geometries, bandwidths, or spectral specifications. Note: Complementary Chirped Mirror Pairs are sold in pairs. Specifications General Model Number: PC147 Note: Sold as a Set of 2 Physical & Mechanical Properties Diameter (mm): 12.70 +0.00/-0.10 Thickness (mm): 6.35 ±0.20 Clear Aperture (%): 80 Wedge Angle (arcmin): 10 ±5 Back Surface: Commercial Polish Bevel: Protective as needed Optical Properties Substrate: Many glass manufacturers offer the same material characteristics under different trade names. Learn More Fused Silica (Corning 7980) Coating: Complementary Chirped Pair (650-1350nm) Coating Type: Dielectric Coating Specification: R avg >99% @ 650 – 1350nm (3° AOI, p-polarization) Wavelength Range (nm): 650 – 1350 Angle of Incidence (°): 5 GDD Specification: -60fs 2 @ 650 – 1350nm (3° AOI, p-polarization) Irregularity (P-V) @ 632.8nm: λ/10 Damage Threshold, By Design: Damage threshold for optical components varies by substrate material and coating. Click here to learn more about this specification. 0.2 J/cm 2 @ 800nm, 50fs Regulatory Compliance RoHS 2015: Compliant × Certificate of Conformance: View × Reach 235: Compliant ×
