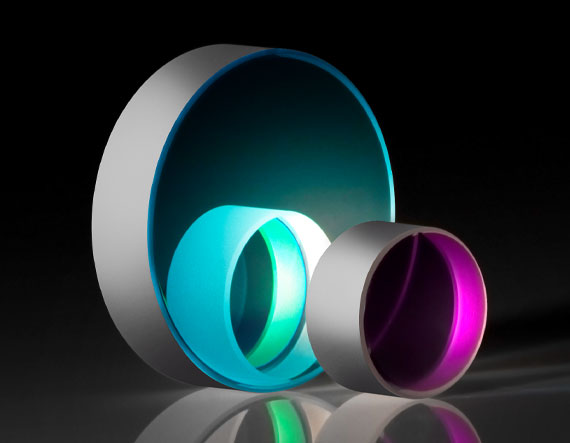

12.7mm Dia. UHR Broadband Dielectric Mirror, 400-750nm

Product Details >99.8% Reflectivity over Broad Visible or NIR Wavelength Ranges 10-5 Surface Quality for Reduced Scatter in Sensitive Laser Applications λ/10 Surface Flatness Ultra-High Reflectivity (UHR) Broadband Dielectric Mirrors are ideal for use with broadband laser or illumination sources in applications that require low reflection loss. These mirrors feature laser grade substrates with λ/10 surface flatness and 10-5 surface quality to minimize scattering effects. Coated with durable dielectric coatings, these mirrors are designed for >99.8% average reflectivity throughout the visible (400 – 750nm) or NIR (740 – 1100nm) spectra, independent of polarization. With a high-quality fused silica substrate, Ultra-High Reflectivity (UHR) Broadband Dielectric Mirrors feature a low coefficient of thermal expansion. Coating Note: Coating designs measured and verified at 532, 632.8, and 1064nm via cavity ring-down spectroscopy (CRDS). Specs may not be verifiable on traditional spectrophotometer equipment. Specifications General Type: Flat Mirror Physical & Mechanical Properties Diameter (mm): 12.70 +0.00/-0.10 Thickness (mm): 6.35 ±0.20 Clear Aperture CA (mm): 11.7 Parallelism (arcmin): <3 Edges: Ground Optical Properties Substrate: Many glass manufacturers offer the same material characteristics under different trade names. Learn More Fused Silica (Corning 7980) Coating: UHR Dielectric Mirror (400-750nm) Coating Type: Dielectric Coating Specification: R avg >99.9% @ 400 – 750nm (45°, s-pol) R avg >99.8% @ 410 – 750nm (45°, p-pol) Wavelength Range (nm): 400 – 750 Surface Flatness (P-V): λ/10 Angle of Incidence (°): 45 Surface Quality: 10-5 Regulatory Compliance Certificate of Conformance: View ×
