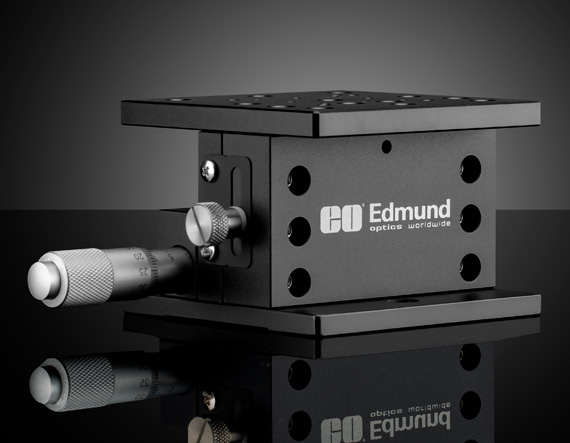

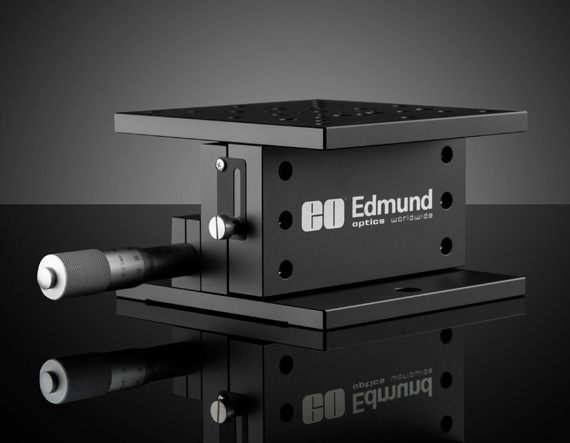

125mm, English Micrometer Z-Stage

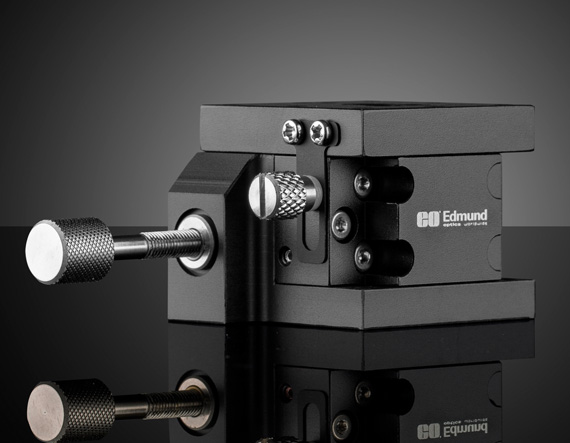

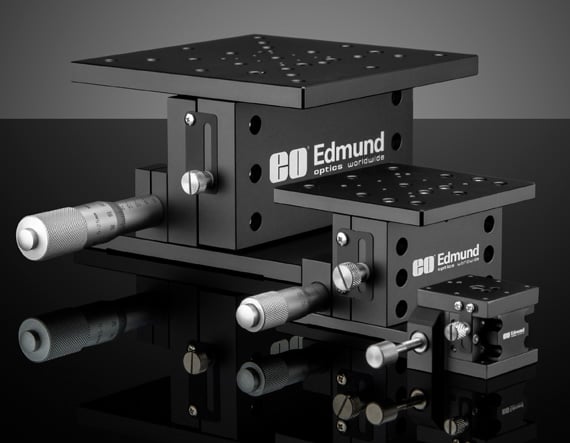

Product Details 70mm and 125mm stages mount directly and do not require bottom adapter plates. Mechanically Compatible with our TECHSPEC Stages Fine Micrometer Movement Locking Screw on Stages Our newly developed precision TECHSPEC Vertical Translations Stages (Z-axis stages) feature a unique and advanced crossed roller bearing guide system that provides high accuracy, rigidness and load capacity. Each stage is designed to integrate with our line of TECHSPEC stages in order to provide flexibility in allowing the user to create a number of multi-axis configurations. These stages have a locking screw and fine micrometer movement. TECHSPEC Vertical Translations Stages are constructed of aluminum and have a linear (Z) movement. The stages are available in both English and Metric versions and are offered in four sizes. Specifications General Type: English Physical & Mechanical Properties Type of Movement: Linear (Z) Guide System: Crossed Roller Bearing Stage Size (mm): 125 x 125 Travel (mm): 20 Center Hole: ¼-20 Construction: Aluminium Stage Leadscrew Pitch (mm): 0.635 Load Capacity (kg): 5 Stage Size (inches): 4.92 x 4.92 Straight Line Accuracy (μm): 3 Hardware & Interface Connectivity Type of Drive: English Micrometer Threading & Mounting Mounting Threads: (21) ¼-20, (4) 6-32, (8) 2-56 Regulatory Compliance RoHS 2015: Exempt × Certificate of Conformance: View × REACH 241: Contains SVHC(s) ×
