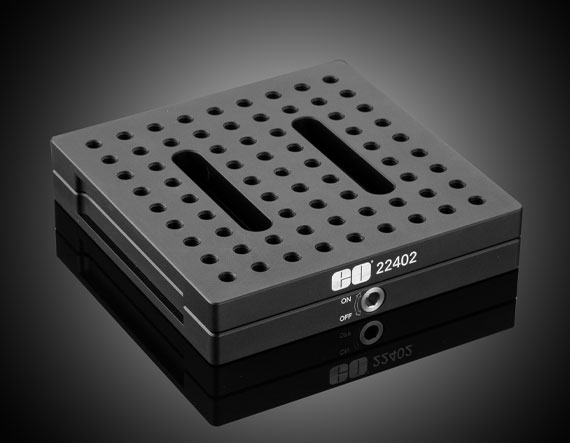

125mm Sq. Metric Kinematic Magnetic Base

Product Details Common 25.4mm (1″) Platform Height Removable Top Plates with High Repeatability Kinematic Positioning Compatible with all with TECHSPEC Stages Kinematic Magnetic Base Plates are ideal for simplifying the adjustment of subsystems in a benchtop optical system. The bases feature a common platform height of 25.4mm (1″) to allow for simplified optical axis alignment. Each base has a removeable top plate, ideal for adding or removing system components and subassemblies anywhere on a lab table with ease. Internal kinematic positioning allows the top plates to be removed and replaced with high repeatability. Kinematic Magnetic Base Plates are directly compatible with our TECHSPEC stages , making them an ideal lab bench component for system building. Specifications General Type: Metric Note: The permanent magnet is turned on and off by integrated screw (5mm Hex) Switchable: Yes Physical & Mechanical Properties Length (mm): 125.00 Width (mm): 125.00 Thickness (mm): 25.40 Construction: Anodized Aluminum Weight (kg): 0.97 Repeatability (µrad): <70.0 Threading & Mounting Mounting Threads: (71) M6 x 1.0 Material Properties Magnetic Force (N): 40 Regulatory Compliance RoHS 2015: Compliant × Certificate of Conformance: View × Reach 247: Compliant ×
