125mm X-Y Positioning Stage

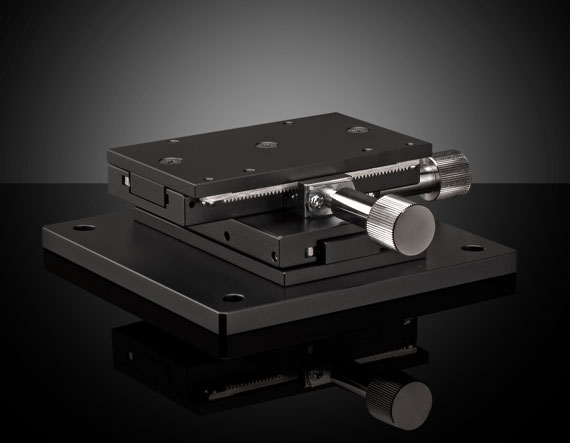

Product Details Compatible with Our TECHSPEC Manual Translation Stages for Additional Axis Alignment ±12.5mm or ±35mm Travel in Both X and Y for Quick X-Y Positioning Universal Bottom Plate for Both English and Metric Breadboard Mounting TECHSPEC X-Y Positioning Stages feature a low profile design and two stacked rack and pinion movements to allow for travel in both X and Y axes. English or Metric top plates are sold separately from the rack and pinion mechanisms. TECHSPEC X-Y Positioning Stages come in two sizes, a 46mm version with a 65mm footprint and a 125mm version with a 125mm footprint, to accommodate a range of benchtop translation applications. The English top plates are compatible with our TECHSPEC English Manual Translation Stages, while the Metric top plates are compatible with our TECHSPEC Metric Manual Translation Stages. The Rack & Pinion Drive Mechanisms come with a black anodized bottom plate featuring a universal hole pattern, which allows it to mount to both English and Metric standard breadboards directly without using additional adapter plates. TECHSPEC X-Y Positioning Stages are ideal for quick X-Y positioning applications. Specifications General Type: Universal Note: Movement Physical & Mechanical Properties Type of Movement: Linear (X-Y) Guide System: Ball Slide Drive Orientation: Center Drive Travel (mm): 70 (±35mm) in X and Y Travel (inches): 2.75 (±1.37) in X and Y Load Capacity, Normal (kg): 10 Straight Line Accuracy (μm): 60 Travel Per Knob Rotation (mm): 18 Hardware & Interface Connectivity Type of Drive: Rack and Pinion Threading & Mounting Mounting Threads: (4) M3 x 0.5 Regulatory Compliance RoHS 2015: Exempt × Reach 224: Contains SVHC(s) × Certificate of Conformance: View ×
