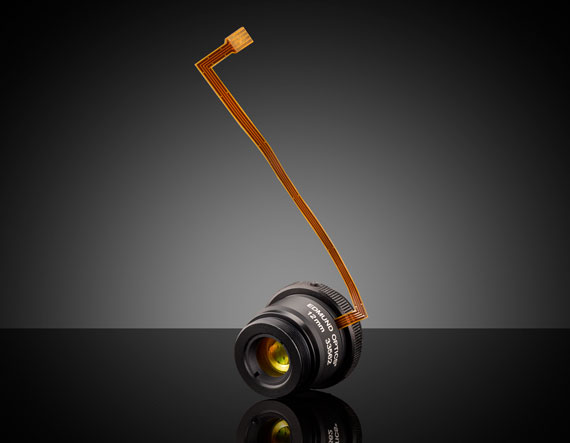

12mm, f/6, Liquid Lens Cx Series Fixed Focal Length Lens

Product Details Specifications General Product Family: LL Cx Series Note: Separate driver not included. Electronic development kit #28-773 recommended. Type: Fixed Focal Length Lens Integrated Liquid Lens Model: Corning Varioptic A-25H0 Imaging Lens Type: Integrated Liquid Lens to Adjust Focus Electronically Special Type of Lens: Liquid Lens Focusable Physical & Mechanical Properties Iris Option: Fixed Length (mm): 29.80 Maximum Diameter (mm): 30 Outer Diameter (mm): 30 Weight (g): 33 Maximum Rear Protrusion (mm): 0.1 Optical Properties Field of View at Max Sensor Format: Horizontal: 58.3mm – 30.2° Vertical: 43.5mm – 22.8° Diagonal: 73.2mm – 37.5° Horizontal Field of View, 1/2″ Sensor: 61.6mm – 30.3° Horizontal Field of View, 1/2.5″ Sensor: 55.8mm – 27.5° Horizontal Field of View, 1/3″ Sensor: 46.0mm – 22.8° Maximum Image Circle (mm): 8.00 Numerical Aperture NA, Object Side: 0.0086 Number of Elements (Groups): 8 (8) Focal Length FL (mm): 12.00 Working Distance (mm): 100 – ∞ Aperture (f/#): f/6 Coating Specification: 425 – 675nm BBAR Entrance Pupil Position (mm): Measured from the first lens surface on the object side. Positive values indicate direction toward the image side; negative values indicate direction toward the object side. 11.74 Object Space Principal Plane (mm): Measured from the first lens surface on the object side. Positive values indicate direction toward the image side; negative values indicate direction toward the object side. 17.40 Image Space Principal Plane (mm): Measured from the last lens surface on the image side. Positive values indicate direction toward the image side; negative values indicate direction toward the object side. 1.93 Maximum Distortion (%): -1.48 Exit Pupil Position (mm): Measured from the last lens surface on the image side. Positive values indicate direction toward the image side; negative values indicate direction toward the object side. -8.8 Lens Wavelength Range: VIS Sensor Maximum Sensor Format: 1/2″ Pixel Size (μm): 2.74 Threading & Mounting Filter Thread: M25.5 x 0.50 (Male) Filter Thread Adapter: #89-941 (Required) Mount: C-Mount Environmental & Durability Factors Storage Temperature (°C): -20 to +60 Regulatory Compliance RoHS 2015: Compliant × Certificate of Conformance: View × Reach 250: Compliant ×
