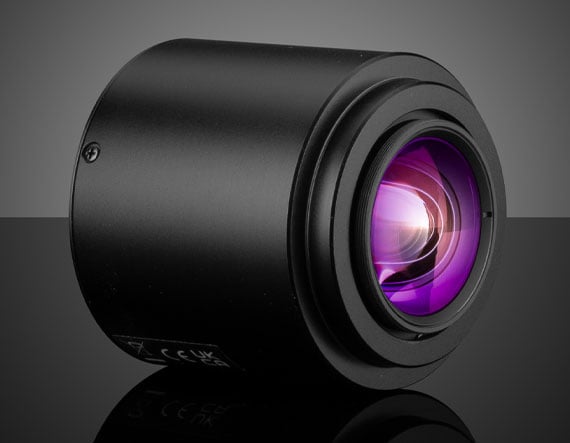

12mm LensConnect BH Series Fixed Focal Length Lens

Product Details Focus and Iris Controlled via Simple USB Interface 12 MegaPixels, 1/1.1”, C-Mount Focal Lengths Ranging from 8mm – 50mm Variable Focal Length Option Available Computar Motorized LensConnect Fixed Focal Length Lenses are designed for remote focus and iris adjustment with a plug-and-play Windows or Linux compatible software. An integrated USB2.0 TypeA connector enables control and provides power to these lenses which are available in focal lengths of 8mm, 12mm, 16mm, 25mm, 35mm, and 50mm. Computar Motorized LensConnect Fixed Focal Length Lenses deliver high resolution for 12MP sensors, and the stepper motors enable precise focus control and high repeatability. These lenses are idea for machine vision, inspection, and space constrained applications where manual adjustments are not possible. Specifications General Product Family: Computar Motorized LensConnect Model Number: DL1224UC-MPY Type: Fixed Focal Length Lens Special Type of Lens: Motorized Physical & Mechanical Properties Iris Option: Motorized Length (mm): 57.90 Outer Diameter (mm): 59.5 Weight (g): 163 Dimensions (mm): 59.5 x 57.9 Optical Properties Horizontal Field of View, 1.1″ Sensor: 50.5° x 38.1° (D 60.2°) Maximum Image Circle (mm): 14.00 Focal Length FL (mm): 12.00 Working Distance (mm): 100 – ∞ Aperture (f/#): f/2.4 – f/16 Maximum Distortion (%): -0.1 Lens Wavelength Range: VIS Sensor Maximum Sensor Format: 1/1.1″ Resolution (Megapixels): 12.00 Pixel Size (μm): 3.45 Hardware & Interface Connectivity Control Interface: USB2.0 TypeA Length of Cable (mm): 300 ±20 Threading & Mounting Filter Thread: M35.5 x 0.50 Mount: C-Mount Regulatory Compliance Certificate of Conformance: View ×
