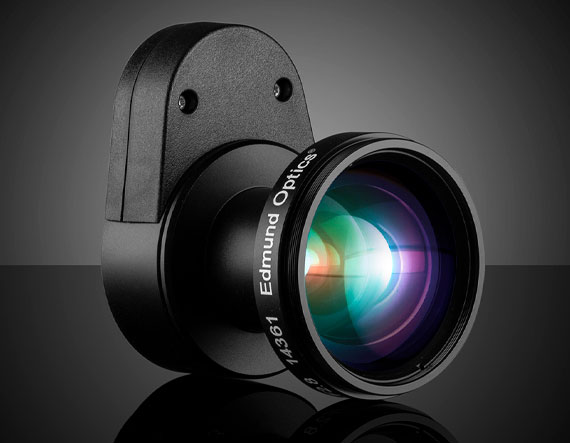

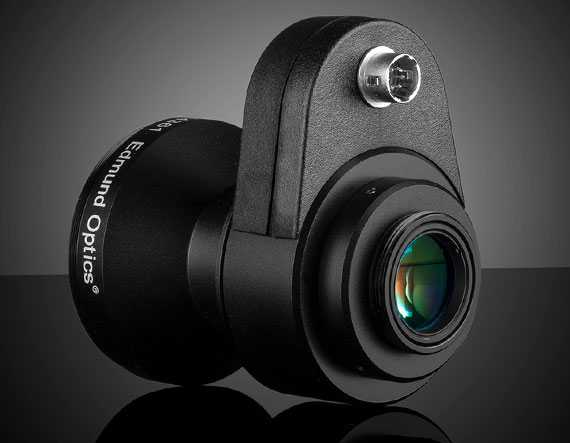

12mm LT Series Fixed Focal Length Lens

Product Details 1.1″ Sensor, C-Mount Lens, up to 12 MegaPixels, 3.45µm Pixel Size Sensor Integrated Liquid Lens Allows for Dynamic Autofocus Liquid Tunable (LT) Lens Maximizes the Liquid Lens Capabilities for Resolution, Range and Focus Speed 12 to 25mm Focal Length TECHSPEC LT Series Fixed Focal Length Lenses feature a high-resolution f/2.8 optical design with an integrated Optotune liquid lens for fast electronic focus. The increased light throughput f/2.8 aperture is ideal for high-speed machine vision applications. When combined with an appropriate camera and software, the focus tunable liquid lens provides the active focus control needed to achieve an autofocus solution. These C-Mount lenses are optimized for 1.1” sensors and have front filter threading to integrate imaging filters to meet application requirements. TECHSPEC LT Series Fixed Focal Length Lenses are ideal for machine vision and factory automation applications where focusing at multiple distances is required, such as quality inspection systems, rapid automation, and package sorting. The TECHSPEC LT Series Fixed Focal Length Lenses won the Gold-Level 2021 Vision Systems Design Innovators Award and third place 2021 reader’s choice inspect Award . Note: Hirose cables (2 length options) and Lens Driver are required for operation and sold separately. Specifications General Product Family: LT Series Note: Diameter includes liquid lens Type: Fixed Focal Length Lens Integrated Liquid Lens Model: Optutune EL-16-40-TC Imaging Lens Type: Integrated Liquid Lens to Adjust Focus Electronically Special Type of Lens: Liquid Lens Focusable Physical & Mechanical Properties Iris Option: Fixed Length (mm): 74.30 Maximum Diameter (mm): 82 Outer Diameter (mm): 82 Weight (g): 245.5 Maximum Rear Protrusion (mm): 0 Optical Properties Horizontal Field of View @ Max Sensor Format: 432.6mm – 60.0° Field of View at Max Sensor Format: Horizontal: 434.3mm – 59.2° Vertical: 321mm – 45.7° Diagonal: 552.2mm – 71.5° Horizontal Field of View, 1.1″ Sensor: 432.6mm – 60.0° Horizontal Field of View, 1″ Sensor: 387.6mm – 54.7° Horizontal Field of View, 2/3″ Sensor: 262.3mm – 38.8° Horizontal Field of View, 1/1.8″ Sensor: 213.6mm – 32.0° Horizontal Field of View, 1/2″ Sensor: 189.4mm – 28.5° Horizontal Field of View, 1/2.5″ Sensor: 171.4mm – 25.9° Horizontal Field of View, 1/3″ Sensor: 141.5mm – 21.5° Horizontal Field of View, 1/4″ Sensor: 105.9mm – 16.2° Maximum Image Circle (mm): 17.60 Numerical Aperture NA, Object Side: 0.006 Number of Elements (Groups): 10 (9) Focal Length FL (mm): 12.00 Working Distance (mm): 350 – ∞ Aperture (f/#): f/2.8 Coating: λ/4 MgF 2 Coating Specification: λ/4 MgF 2 Entrance Pupil Position (mm): Measured from the first lens surface on the object side. Positive values indicate direction toward the image side; negative values indicate direction toward the object side. 31.2 Object Space Principal Plane (mm): Measured from the first lens surface on the object side. Positive values indicate direction toward the image side; negative values indicate direction toward the object side. 39.92 Image Space Principal Plane (mm): Measured from the last lens surface on the image side. Positive values indicate direction toward the image side; negative values indicate direction toward the object side. 2.45 Maximum Distortion (%): -4.23 Exit Pupil Position (mm): Measured from the last lens surface on the image side. Positive values indicate direction toward the image side; negative values indicate direction toward the object side. -26.58 Lens Wavelength Range: VIS Sensor Maximum Sensor Format: 1.1″ Pixel Size (μm): 2.74 Threading & Mounting Filter Thread: M62 x 0.75 (Male) Filter Thread Adapter: #34-236 (Required) Front Thread: M48 x 0.5 (Male) Mount: C-Mount Environmental & Durability Factors Storage Temperature (°C): -20 to +60 Regulatory Compliance Certificate of Conformance: View ×
