13mm Travel, Lead Screw F-Face

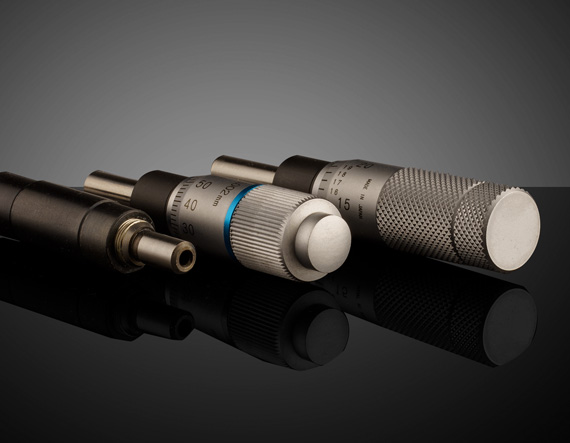

Product Details Micrometer, Fine Screw, Digital and Differential Options Available Compatible with our Ball Bearing Stages These drive mechanisms add versatility to our selection of ball bearing stages . Four options are available: micrometer (English and Metric), fine screw, digital, and differential. Please reference individual product descriptions to see which stages are compatible with each drive mechanism. Specifications General Type: Metric Manufacturer: Mitutoyo Physical & Mechanical Properties Travel (mm): 13 Graduation (mm): None Stem Diameter (mm): 9.5 Stem/Spindle: Plain/Flat Stem Length (mm): 9.5 Spindle Diameter (mm): 5 Min. Spindle Length (mm): 15.5 Max. Diameter (mm): 10.5 Overall Length (mm): 57.5 Hardware & Interface Connectivity Type of Drive: Lead Screw Regulatory Compliance RoHS 2015: Exempt × Certificate of Conformance: View × REACH 241: Contains SVHC(s) ×
