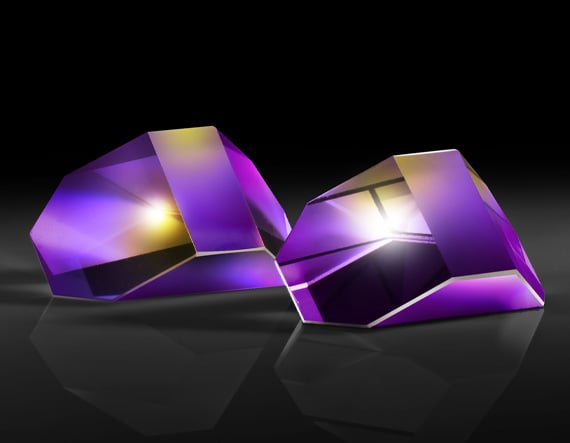

14mm Protected Silver Coated, Amici Roof Prism

Product Details Ray Deviation of 90° Right Handed Image 6 Arcsecond Resolution Roof Surfaces Available Uncoated or Silver Coated Amici prisms, also called “roof prisms” or “right angle roof prisms,” revert and invert the image as well as bend the line of sight through a 90°angle. Ideal for use in spotting scopes, and any optical instrument where it is desirable to take an inverted image from an objective, turn it right side up, and bend it through a 90° angle in order to maintain the correct visual orientation. With linearly polarized incident light, the light exiting an uncoated Amici prism is a mix of two elliptical polarizations which causes a reduction in contrast and resolution in some applications. The silver coated Amici roof prisms eliminate these issues. Specifications General Type: Amici Roof Prism Note: Black Overpaint is 30-60µm Thick Physical & Mechanical Properties Clear Aperture CA (mm): 13.00 Dimensional Tolerance (mm): +0/-0.1 Resolution (arcsec): 6.00 Bevel: Protective as needed Optical Properties Coating: Silver with protective overcoat Substrate: Many glass manufacturers offer the same material characteristics under different trade names. Learn More N-BK7 Surface Quality: 60-40 Angle Tolerance (arcmin): ±5 Image Orientation: Right-Handed Coating Specification: Reflective Surfaces: R abs > 97% FROM 400 – 2500nm @ 0° AOI R avg > 98% FROM 400 – 2500nm @ 0° AOI Ray Deviation (°): 90 Wavelength Range (nm): 350 – 2200 Coating Type: Metal Damage Threshold, By Design: Damage threshold for optical components varies by substrate material and coating. Click here to learn more about this specification. 0.5 J/cm 2 @ 532nm & 1064nm, 10ns Power (fringes) @ 632.8nm: 3.00 Irregularity (fringes) @ 632.8nm: 1.00 Regulatory Compliance Certificate of Conformance: View ×
