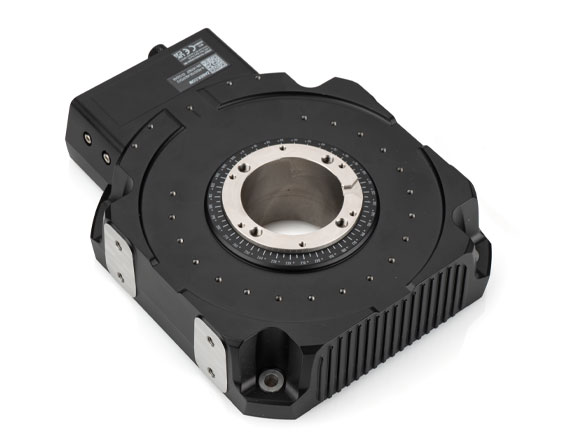

150mm Diameter Direct Drive Motorized Rotary Stage

Product Details Large 150mm Diameter Mounting Platform With 360° Continuous Rotation Contactless Direct Drive for High-Speed Silent Operation and Long Lifetime High Precision 0.01 Arc Second Encoder Resolution and 1µrad Minimum Step Size Zaber High Speed Direct Drive Motorized Rotary Stage System combines a large 150mm diameter mounting platform with 360° continuous rotation supporting centered loads up to 10kg and rotation speeds up to 450RPM. These rotary stages’ contactless direct drive design delivers high-speed, silent operation and long service life for demanding positioning and automation applications. For precision motion control, the stage provides 0.01 arc second encoder resolution and a 1 µrad minimum step size, enabling highly repeatable positioning. Zaber High Speed Direct Drive Motorized Rotary Stage System features a 50.8mm (2″) diameter rotating aperture, providing added flexibility for optical, inspection, and through-hole system integration. This stage is also daisy-chain compatible with other Zaber products, simplifying multi-axis system setup and control. Note: A 48 VDC universal power supply, data cables for daisy chaining, and computer interface cables (USB #15-295 or RS-232 #15-297 ) are sold separately as accessories. The optional metric stage top (#92-219) provides a larger mounting surface and a convenient 25mm grid pattern of M6 and M3 holes. U.S. Tariff Pricing Notice: Pricing for certain products in this family may reflect recent changes in U.S. tariffs on Canadian-origin products. Prices shown include any applicable tariff-related adjustment; no additional tariff surcharge will be added at checkout. Specifications General Type: Metric Encoder: Yes Manual Control/ LED Indicators: Yes Manufacturer: Zaber Technologies Inc. Model Number: X-RDQ150-AE57D12 Note: Requires a 48 VDC power supply and either #15-295 for USB connectivity or #15-297 for RS-232 connectivity. A data cable ( #15-296 or #15-299 ) can be used to daisy chain multiple stages together to control simultaneously. Encoder Type: Direct Reading Optical Encoder Physical & Mechanical Properties Type of Movement: Rotary Stage Size (mm): 224 x 160 Travel (°): 360 Accuracy (°): 0.006 Height (mm): 50 Load Capacity (kg): 10 Load Capacity (N): 100 Repeatability (°): < 0.0001 Speed (°/s): 2700 Weight (kg): 3.225 Table Diameter (mm): 150 Encoder Resolution: 129,600,000 CPR Max. Continuous Torque (N⋅cm): 200 Electrical Current (mA): 3750 Maximum Operating Current (mA): 3750 Hardware & Interface Connectivity Type of Drive: Direct Drive Power Supply: Power Supply Required and Sold Separately: USA: #70-961 (3.7A), #70-962 (6.5A) Europe: #70-961 (3.7A), #70-962 (6.5A) Japan: #70-962 (6.5A) Korea: #33-773 (2.0A) China: #70-961 (3.7A), #70-962 (6.5A) Computer Interface: Required for Operation: USB with #15-295 RS-232 with #15-297 Environmental & Durability Factors Operating Temperature (°C): 0-40 Regulatory Compliance RoHS 2015: Exempt × Certificate of Conformance: View × Reach 253: Contains SVHC(s) ×
