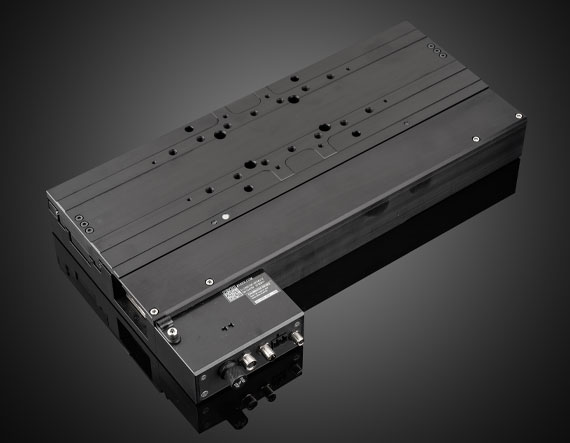

150mm Travel, High Precision Linear Motor Stage, Integrated Controller, Linear Encoder

Product Details 25, 75, 150mm Travel Options Up to 800mm/s Speed High Repeatability and Accuracy Zaber High Precision Linear Motorized Stages are computer-controlled linear stages that utilize a moving magnet track linear motor and centrally located encoder to accurately and precisely position optical components or subsystems. These stages can connect directly to a computer’s USB or RS-232 port and are compatible with Zaber Launcher and Zaber’s Motion Library for quick set up and intuitive automation and control. The linear analog encoder has 1nm count size ensuring 1.5µm positional accuracy, 200µm repeatability, and consistent minimal incremental movement steps down to 20nm. Zaber High Precision Linear Motorized Stages are driven by non-cogging ironless linear motors which allow for speeds up to 800 mm/s with a minimum speed and speed resolution of 0.61mm/s. These stages are designed with metric tapped holes for mounting and an indexed knob and push switch for manual control when needed. Note: A 48 VDC universal power supply, data cables for daisy chaining, and computer interface cables (USB or RS-232) are sold separately as accessories. U.S. Tariff Pricing Notice: Pricing for certain products in this family may reflect recent changes in U.S. tariffs on Canadian-origin products. Prices shown include any applicable tariff-related adjustment; no additional tariff surcharge will be added at checkout. Specifications General Type: Metric Encoder: Yes Manual Control/ LED Indicators: Yes Manufacturer: Zaber Technologies Inc. Note: Requires a 24-48 VDC power supply and either #15-295 for USB connectivity or #15-297 for RS-232 connectivity. A data cable ( #15-296 or #15-299 ) can be used to daisy chain multiple stages together to control simultaneously. Type of Motor: Moving Magnet Track Linear Motor Encoder Type: Linear Analog Encoder Physical & Mechanical Properties Type of Movement: Linear (X) Guide System: Crossed-Roller Bearing Stage Size (mm): 230 x 90 Travel (mm): 150 Accuracy (μm): 1.5 Height (mm): 31 Load Capacity (kg): 10 Repeatability (μm): <0.2 Speed (mm/s): 0.00061 - 800 Weight (kg): 1.81 Electrical Maximum Operating Current (mA): 3000 Hardware & Interface Connectivity Type of Drive: Moving Magnet Track Linear Motor Power Supply: Power Supply Required and Sold Separately: USA: #70-960 (1.2A), #70-961 (3.7A), #70-962 (6.5A) Europe: #70-960 (1.2A), #70-961 (3.7A), #70-962 (6.5A) Japan: #23-662 (2.5A) Korea: #33-773 (2.0A) China: #70-960 (1.2A), #70-961 (3.7A), #70-962 (6.5A) Computer Interface: RS-232 Environmental & Durability Factors Operating Temperature (°C): 0 - 50 Regulatory Compliance RoHS 2015: Compliant × Certificate of Conformance: View × Reach 247: Compliant ×
