152.4mm High Resolution Image Conduit with 12μm Fibers

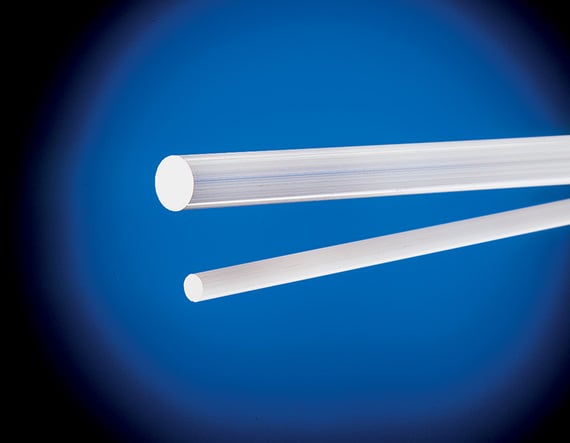

Product Details Fused Glass Optical Fiber Rods with Ground and Polished Faces Coherent Arrangement of Fibers Relays Images Rigid Rods Bend Under Heat to Almost Any Orientation Fiber Optic Image Conduits transmit images from one polished face to the other and can be used straight or bent to fit space requirements without loss of light transmission. These conduits are fused glass optical fiber rods with ground and polished faces. These Fiber Optic Image Conduits can be bent by heating evenly over a Bunsen burner or in a glass oven while applying pressure and are ideal for fiber optic imaging. Fiber Optic Image Conduits’ coherent arrangement of fibers relays images. The conduits are available in standard or high resolution, in a variety of different lengths. Specifications General Type: High-Resolution Packing Fraction (%): 100.00 Physical & Mechanical Properties Minimum Bend Radius (mm): 12.8 Diameter Tolerance (inches): ±0.010 Length (mm): 152.40 Number of Fibers: 50419.00 Outer Diameter (mm): 3.20 Length Tolerance (inches): ±0.030 Optical Properties Numerical Aperture NA: 0.55 Resolution: 42 lp/mm Transmission (%): 35 – 45 Fiber Diameter (μm): 12.00 Index of Refraction (n d ) – Core: 1.58 Index of Refraction (n d ) – Cladding: 1.48 Wavelength Range (nm): 350 – 1500 Material Properties Transformation Temperature (°C): 704.00 Environmental & Durability Factors Operating Temperature (°C): 454.00 Regulatory Compliance Certificate of Conformance: View ×
