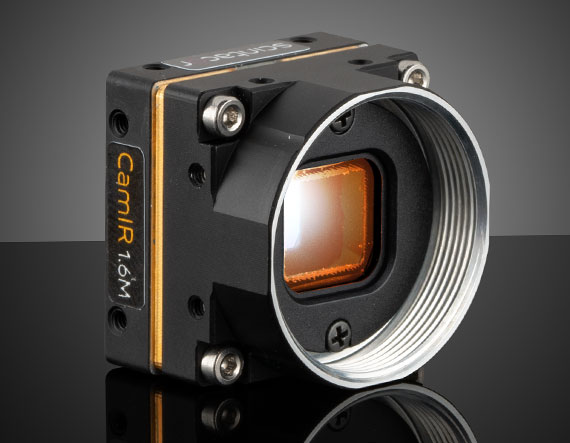

1550nm NIR 1.6MP USB 3.1 Camera

Product Details 1550nm Designed Wavelength Phosphor Coated Camera Sensor Includes Camera, Cable, and Easy-to-Use Software UV Versions Available CamIR 1550nm NIR USB 3.1 Cameras are designed with phosphor-based scintillators allowing for the camera to image in the near infrared (NIR) and providing an excellent alternative to InGaAs detectors. These cameras are available in 1.6MP or 2.8MP options, with the 1.6MP camera being CS-Mount and the 2.8MP camera being C-Mount. Featuring 1550nm designed wavelengths, these cameras have a wavelength range of 1495 – 1595nm. CamIR 1550nm NIR USB 3.1 Cameras ship with the camera, cable, USB drive containing software, and a getting started guide to make set up simple. These cameras are ideal for laser alignment, telecommunications testing, and inspection applications. Specifications Spectrum: NIR General Type: NIR Camera Manufacturer: Scintacor Physical & Mechanical Properties Dimensions (mm): 27 x 27 x 14.5 Weight (g): 20 Housing: Full Sensor Sensor Format: 1/2.9″ Resolution (Megapixels): 1.60 Frame Rate (fps): 60.00 Pixels (H x V): 1,440 x 1,080 Pixel Size, H x V (μm): 3.45 x 3.45 Sensing Area, H x V (mm): 4.97 x 3.73 Imaging Sensor: Sony IMX296 Type of Sensor: Progressive Scan CMOS Shutter Type: Global Pixel Depth: 10 bit Exposure Time: 29 µs to 30 sec Dynamic Range (dB): 66.03 Electrical Power Consumption (W): 2.2 Hardware & Interface Connectivity Interface: USB 3.1 Connector: USB 3.1 Power Supply: Power over USB GPIOs: 1 opto-isolated input, 1 opto-isolated output, 1 non-isolated bi-directional, 1 non-isolated input Synchronization: Hardware Trigger (GPIO) or Software Trigger Interface Port Orientation: Back Panel GPIO Connector Type: 7-pin JST Threading & Mounting Mount: CS-Mount Environmental & Durability Factors Operating Temperature (°C): 0 to 50 Storage Temperature (°C): -30 to +60 Regulatory Compliance Certificate of Conformance: View ×
