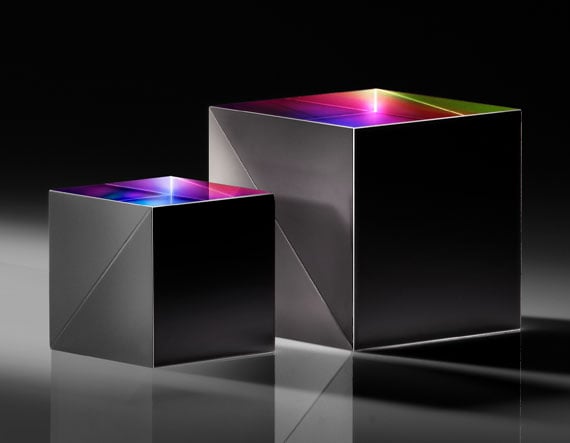

15mm 30R/70T In-Line Cube Beamsplitter

Product Details Significantly Reduces Glare and Interference 30/70 Reflection/Transmission Ratio Ideal for In-Line Illumination Cube Beamsplitters Also Available TECHSPEC In-Line Illumination Cube Beamsplitters are specialized versions of TECHSPEC Cube Beamsplitters that include a proprietary surface treatment on one surface. This feature reduces glare, interference artifacts, and improves image contrast. Output is partially polarized, making TECHSPEC In-Line Illumination Cube Beamsplitters suitable for illumination, specifically in applications sensitive to ghost reflections, and other applications where polarization is not a concern. TECHSPEC In-Line Illumination Cube Beamsplitters feature an interference coating applied to the hypotenuse of one of the prisms to provide the designated reflection/transmission ratio. Absorption loss to the coating is minimal. Note: If polarization sensitivity is critical to your application, we recommend using TECHSPEC Polarizing Beamsplitters or TECHSPEC Non-Polarizing Beamsplitters . Specifications General Note: Absorptive Surface Treatment on Blackened Face Type: Standard Beamsplitter Physical & Mechanical Properties Bevel: Protective as needed Clear Aperture (%): >90 Construction: Cube Dimensions (mm): 15.0 x 15.0 x 15.0 Optical Properties Beam Deviation (arcmin): ≤3 Coating: λ/4 MgF 2 @ 550nm on Faces Multilayer Dielectric on Hypotenuse Reflection/Transmission Ratio (R/T): 30/70 Substrate: Many glass manufacturers offer the same material characteristics under different trade names. Learn More N-BK7 Surface Quality: 60-40 Wavelength Range (nm): 400 – 700 Absolute Transmission (%): 70±5 @550nm Average Transmission (%): 70 ±10 from 400-700nm Power (fringes) @ 632.8nm: 1.25 Irregularity (fringes) @ 632.8nm: 0.25 Regulatory Compliance Certificate of Conformance: View ×
