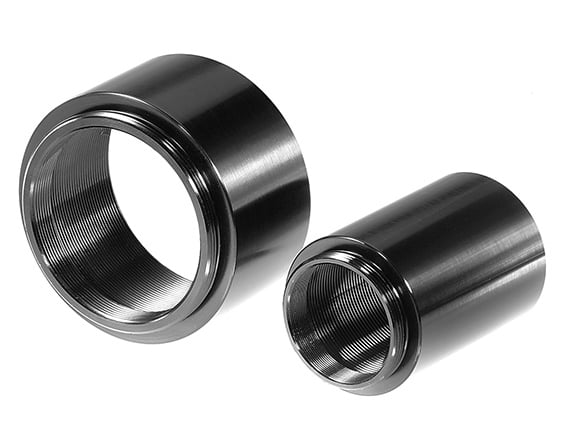

15mm Length, C-Mount Extension Tube

Product Details Used for Adding a Fixed Tube Extension to Optical Systems Feature Male/Female Threads at Opposite Ends Black Anodized Aluminum Construction TECHSPEC C, S, and T-Mount Extension Tubes add extension length to an optical system while blocking external light and debris from entering the system. Extension tubes are available with C, S, or T-Mount threading, allowing them to be integrated into a wide range of systems and applications. Their black anodized aluminum construction, combined with a threaded inner diameter, ensures that stray light is reduced within the system. TECHSPEC C, S, and T-Mount Extension Tubes feature different lengths that can be combined to create the exact extension length needed for a specific application. The actual tube length is longer than the extension length due to the male threaded portion. Specifications General Type: Extension Tube Function: Extension Tube (Fixed) Physical & Mechanical Properties Extension Length (mm): 15.0 Total Length (mm): 19.0 Clear Aperture CA (mm): 22.0 Outer Diameter (mm): 30.0 Threading & Mounting Thread Type: C-Mount Regulatory Compliance RoHS 2015: Compliant × Certificate of Conformance: View × REACH 241: Compliant ×
