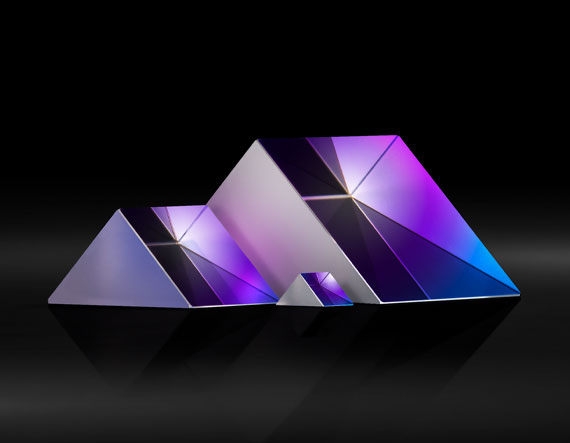

15mm Protected Silver, λ/20 Fused Silica Right Angle Prism Mirror

Product Details Precision Fused Silica Substrates for Increased Thermal Stability Ideal for System Alignment Enhanced Aluminum, Protected Gold, and Protected Silver Coatings Available TECHSPEC λ/20 Fused Silica Right Angle Prism Mirrors feature broadband metal coatings and a ±15 arcsecond angular tolerance for applications that require precision alignment. These highly reflective right angle mirrors simplify alignment when mounting and are easily integrated into systems that redirect light at 90°. TECHSPEC λ/20 Fused Silica Right Angle Prism Mirrors utilize Fused Silica substrates for high temperature environments and their precision design and tolerances enable easy system integration. Coating options feature >95% reflectivity from 450nm to the long wave infrared (IR). Specifications General Type: Right Angle Mirror Physical & Mechanical Properties Dimensional Tolerance (mm): +0.00/-0.10 Length of Hypotenuse (mm): 21.20 Length of Legs (mm): 15.00 Clear Aperture CA (mm): 19.08 x 13.50 Bevel: Protective as needed Optical Properties Substrate: Many glass manufacturers offer the same material characteristics under different trade names. Learn More Fused Silica (Corning 7980) Coating: Protected Silver (450-10000nm) Coating Type: Metal Coating Specification: R avg >98% @ 450 – 800nm R avg >98.5% @ 2000 – 10,000nm Wavelength Range (nm): 450 – 10000 Wavelength Range (μm): 0.45 – 10 Surface Flatness (P-V): λ/20 Surface Quality: 20-10 Damage Threshold, Reference: Damage threshold for optical components varies by substrate material and coating. Click here to learn more about this specification. 0.5 J/cm 2 @ 532nm & 1064nm, 10ns Angle Tolerance (arcsec): ±15 Regulatory Compliance RoHS 2015: Compliant × Certificate of Conformance: View × Reach 247: Compliant ×
