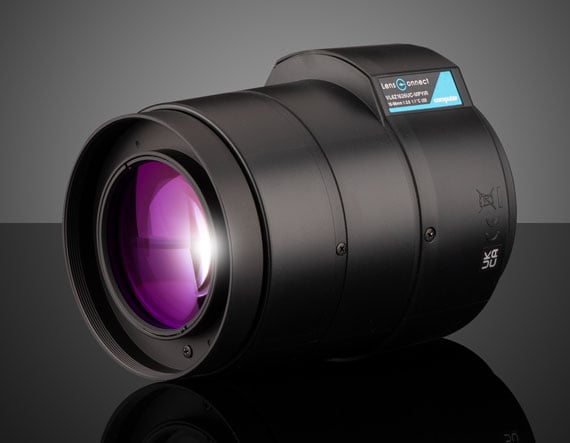

16 – 96mm LensConnect BH Series Variable Focal Length Lens

Product Details Focus, Iris, and Zoom Controlled via Simple USB Interface 5 MegaPixels, 1/1.8”, CS-Mount or 12 MegaPixels, 1.1”, C-Mount 4 – 10mm, 9 – 50mm, or 16 – 96mm Variable Focal Lengths Available Fixed Focal Length Options Available Computar Motorized LensConnect Variable Focal Length Lenses are designed for remote focus, iris and zoom adjustment with a plug-and-play Windows or Linux compatible software. An integrated USB2.0 TypeA connector enables control and provides power to these lenses which are available in variable focal lengths of 4 – 10mm, 9 – 50mm, or 16 – 96mm. Computar Motorized LensConnect Variable Focal Length Lenses deliver high resolution for 5MP or 12MP sensors, and the stepper motors enable precise focus control and high repeatability. These lenses are ideal for machine vision, inspection, and space constrained applications where manual adjustments are not possible. Specifications General Model Number: VL6Z1626UC-MPYIR Type: Varifocal Lens Physical & Mechanical Properties Iris Option: Motorized Weight (g): 330 Optical Properties Horizontal Field of View, 1.1″ Sensor: Wide 48.1° x 8.5° (D 58.9°); Tele 8.5° x 6.3° (D 10.4°) Focal Length Range (mm): 16-96 Working Distance (mm): 3000 – ∞ Aperture (f/#): f/2.8 – f/16 Lens Wavelength Range: VIS Sensor Maximum Sensor Format: 1.1″ Resolution (Megapixels): 12.00 Hardware & Interface Connectivity Control Interface: USB2.0 TypeA Length of Cable (mm): 300 ±20 Threading & Mounting Filter Thread: M67.0 x 0.75 Mount: C-Mount Regulatory Compliance Certificate of Conformance: View ×
