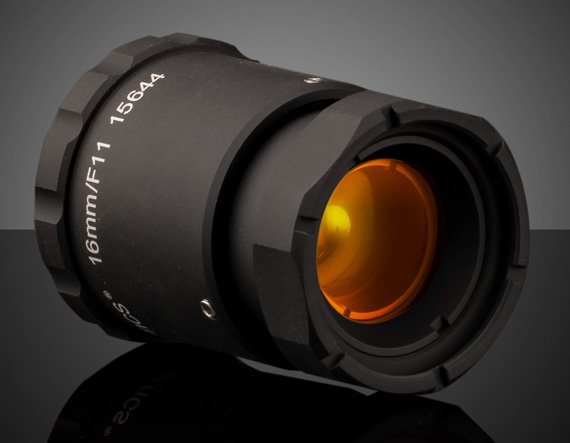

16mm, f/4 Cw Series Fixed Focal Length Lens

Product Details Up to 2/3″, C-Mount Lens Waterproof (Cw) Versions of C Series Fixed Focal Length Lenses Meets IEC Ingress Protection Ratings of IPX7 and IPX9K Designed to Eliminate the Need for a Protective Lens Cover TECHSPEC Cw Series Fixed Focal Length Lenses are waterproof versions of our TECHSPEC C Series Fixed Focal Length Lenses . Designed to meet IEC Ingress Protection Codes IPX7 and IPX9K, these lenses withstand exposure to water up to 1 meter depth for 30 minutes and operate in close-range high pressure, high temperature water spray downs with the exception of all 3.5 and 4.5mm options which are IPX7. These lenses include a hydrophobic coated window to prevent water droplets from settling on the lens’ surface. To prevent moisture from entering the housing, the lenses are sealed with multiple O-rings. TECHSPEC Cw Series Fixed Focal Length Lenses are designed for up to 7.5 MegaPixel, 2/3″ sensors and are ideal for applications including food, pharma, automotive, and security. These lenses won the Bronze-Level 2021 Vision Systems Design Innovators Award. Edmund Optics has created a family of high performance optical designs (the C Series family) and developed 6 customized optomechanical solutions targeted for specific applications. These lens sub-families utilize the same optics as the C Series lenses providing the same optical performance in a variety of optomechanical solutions to meet your application requirements: C Series : Features locking cam focus and iris adjustment and is the most adjustable version of these optical designs; they are the typical high quality machine vision lenses. Also available with a VIS-NIR Broadband Anti-Reflection (BBAR) Coating. Ci Series : Simplified mechanics featuring fixed apertures with compact housing. Industrial Ruggedization for reduced size, cost, and locked focus. Cr Series : All optics glued in place and a locking C-clamp focus ring. Stabilized Ruggedization for reduced pixel shift and improved focus stability. Cx Series : Modular, flexible mechanics allows lenses to be taken apart for easy integration of accessories such as liquid lenses, apertures, and more. Liquid Lens Cx Series: Designed with an integrated liquid lens for quick autofocus. Cw Series: Waterproof, designed to meet IEC Ingress Protection Code IPX7 and IPX9K. Specifications General Product Family: Cw Series Note: C-Mount compatible with O-ring 25mm ID x 2mm Type: Fixed Focal Length Lens Physical & Mechanical Properties Iris Option: Fixed Length (mm): 48.60 Maximum Diameter (mm): 37.77 Outer Diameter (mm): 34.1 Maximum Rear Protrusion (mm): 1.9 Diameter (mm): 38.00 Optical Properties Horizontal Field of View @ Max Sensor Format: 65.5mm – 27.8° Field of View at Max Sensor Format: Horizontal: 31° Vertical: 23.4° Diagonal: 38.2° Horizontal Field of View, 2/3″ Sensor: 27.8° Horizontal Field of View, 1/1.8″ Sensor: 22.9° Horizontal Field of View, 1/2″ Sensor: 20.4° Horizontal Field of View, 1/2.5″ Sensor: 18.5° Horizontal Field of View, 1/3″ Sensor: 15.3° Horizontal Field of View, 1/4″ Sensor: 11.5° Maximum Image Circle (mm): 11.00 Numerical Aperture NA, Object Side: 0.0152 Number of Elements (Groups): 7 (6) Focal Length FL (mm): 16.00 Working Distance (mm): 100 – ∞ Aperture (f/#): f/4 Coating: 425 – 675nm BBAR Coating Specification: 425 – 675nm BBAR Entrance Pupil Position (mm): Measured from the first lens surface on the object side. Positive values indicate direction toward the image side; negative values indicate direction toward the object side. 23.03 Object Space Principal Plane (mm): Measured from the first lens surface on the object side. Positive values indicate direction toward the image side; negative values indicate direction toward the object side. 25.15 Image Space Principal Plane (mm): Measured from the last lens surface on the image side. Positive values indicate direction toward the image side; negative values indicate direction toward the object side. -3.00 Maximum Distortion (%): -0.77 Exit Pupil Position (mm): Measured from the last lens surface on the image side. Positive values indicate direction toward the image side; negative values indicate direction toward the object side. -5.43 Lens Wavelength Range: VIS Sensor Maximum Sensor Format: 2/3″ Pixel Size (μm): 2.74 Threading & Mounting Filter Thread: M30.5 x 0.50 (Female) Mount: C-Mount Environmental & Durability Factors Environmental Rating: IPX7 and IPX9K Storage Temperature (°C): -20 to +60 Type of Ruggedization: Waterproof (IPX7 and IPX9K) Regulatory Compliance Certificate of Conformance: View ×
