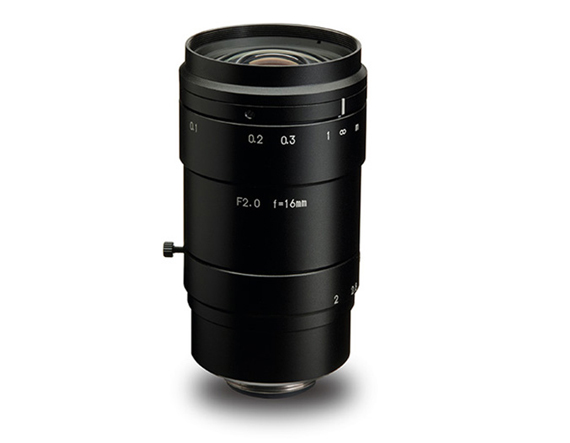

16mm Fixed Focal Length Lens

Product Details Up to 1″, C-Mount Lens Less than 1.0% TV Distortion 12mm to 50mm Focal Length Available in multiple focal lengths, 4/3″ Format Fixed Focal Length Lenses incorporate a floating focus with aspheric lenses to maximize resolution across their entire working distance. Ideal for many machine vision applications, these fixed focal length lenses feature a broadband anti-reflection (AR) coating for maximum transmission. 4/3″ Format Fixed Focal Length Lenses are available with focal lengths ranging from 12 – 50mm. Specifications General Product Family: 4/3″ Format Fixed Focal Length Lenses Type: Fixed Focal Length Lens Physical & Mechanical Properties Iris Option: Variable Length (mm): 79.50 Maximum Diameter (mm): 45.0 Outer Diameter (mm): 45 Weight (g): 250.00 Optical Properties Horizontal Field of View @ Max Sensor Format: 60.6 Field of View @ Min Working Distance (mm): 135.00 Maximum Image Circle (mm): 21.60 Focal Length FL (mm): 16.00 Working Distance (mm): 100 – ∞ Aperture (f/#): f/2 – f/22 Distortion (%): <0.1 Maximum Distortion (%): 0.02 Lens Wavelength Range: VIS Sensor Maximum Sensor Format: 4/3" Pixel Size (μm): 5.00 Threading & Mounting Filter Thread: M40.5 x 0.50 Mount: C-Mount Regulatory Compliance RoHS 2015: Exempt × Certificate of Conformance: View × REACH 241: Contains SVHC(s) ×
