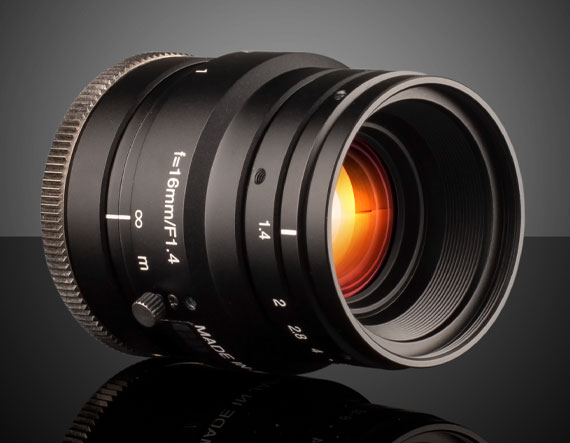

16mm Focal Length Lens, 1″ Sensor Format

Product Details Up to 1″, C-Mount Lens “Fast” Lenses for Increased Throughput 4.7mm to 75mm Focal Length 1” Format Fixed Focal Length Lenses provide high throughput and high resolution across the entire camera sensor, allowing for excellent imaging even in less-than-ideal lighting conditions. Offered in 9 focal lengths from 4.7mm to 75mm, this complete family covers many of the applications in the market today. Engineered to minimize distortion, these lenses provide a perfect image for a human operator or an automated system. 1” Format Fixed Focal Length Lenses also feature a standard C-Mount lens mount for easy integration with the most common machine vision cameras we offer. All lenses feature front filter threading to attach to your choice of optical filter . Specifications General Product Family: 1″ Format Fixed Focal Length Lenses Type: Fixed Focal Length Lens Physical & Mechanical Properties Iris Option: Variable Length (mm): 52.90 Maximum Diameter (mm): 42.0 Outer Diameter (mm): 42 Weight (g): 140 Optical Properties Horizontal Field of View, 1″ Sensor: 44.3° Maximum Image Circle (mm): 16.00 TV Distortion (%): <1.0 Focal Length FL (mm): 16.00 Working Distance (mm): 300 - ∞ Aperture (f/#): f/1.4 - f/16 Maximum Distortion (%): < -1.0% Lens Wavelength Range: VIS Sensor Maximum Sensor Format: 1" Pixel Size (μm): 5.00 Threading & Mounting Filter Thread: M35.5 x 0.50 Mount: C-Mount Regulatory Compliance RoHS 2015: Exempt × Certificate of Conformance: View × REACH 241: Contains SVHC(s) ×
