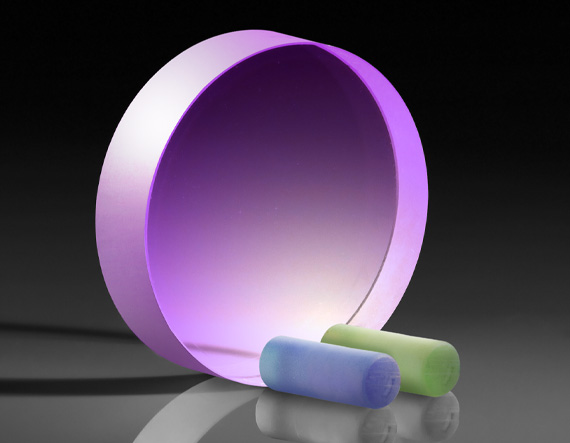

19.05mm Dia. 1064nm 0°, Nd:YAG Laser Line Mirror

Product Details Output Couplers, Laser Line Mirrors, and Nd:YAG Rods 80% or 90% Reflectivity @ 1064nm Output Couplers 0.6% Nd Dopant Nd:YAG Rods Large Selection of Complementary Nd:YAG Laser Optics Available Nd:YAG Laser Replacement Parts consist of output couplers, laser line mirrors, and Nd:YAG rods that can be dropped into Nd:YAG lasers. Output couplers are available with a ¾” (19.05mm) diameter with either 80% or 90% reflectivity at 1064nm and pair excellently in a laser cavity with the 1064nm laser line mirror with >99.9% reflectivity. Nd:YAG rods with 0.6% Nd dopant are available with a 4mm diameter and a length of 79 or 101mm, common sizes for industrial, marking, and surgical lasers. Nd:YAG Laser Replacement Parts are ideal for Nd:YAG lasers requiring maintenance or repair and could be used with lasers from manufacturers such as Holobeam Laser, Carl Bassel Laser, Lee Laser, and Control Laser. Please contact us if your application requires custom Nd:YAG replacement parts or optics using our laser crystal and glass capabilities and coating capabilities . Specifications General Type: Laser Mirror Physical & Mechanical Properties Thickness (mm): 9.53 ±0.20 Diameter (mm): 19.05 +0.00/-0.13 Clear Aperture (%): 90 Back Surface: Commercial Polish Parallelism (arcmin): <5 Optical Properties Substrate: Many glass manufacturers offer the same material characteristics under different trade names. Learn More Fused Silica (Corning 7980) Surface Quality: 10-5 Angle of Incidence (°): 0 Coating: Laser Mirror (1064nm) Design Wavelength DWL (nm): 1064 Reflection at DWL (%): 99.9 Wavelength Range (nm): 1046 - 1074 Surface Flatness (P-V): λ/10 Coating Specification: R abs >99.9% @ 1064nm Coating Type: Dielectric Damage Threshold, By Design: Damage threshold for optical components varies by substrate material and coating. Click here to learn more about this specification. 57.85 J/cm 2 @ 1064nm, 20ns, 20Hz Regulatory Compliance RoHS 2015: Compliant × Certificate of Conformance: View × Reach 253: Compliant ×
