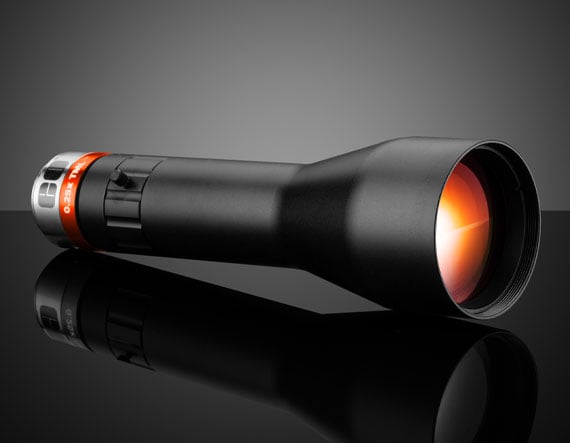

2.0X, SilverTL SWIR Telecentric Lens

Product Details High Resolution f/6 Bi-Telecentric Lenses with Inline Illumination Options Up to 7.5 MegaPixels, 2.8μm Pixel Size Sensors Eliminate Parallax Error in Measurement Applications SWIR Coated Lenses for 900-1700nm Wavelength Range TECHSPEC SilverTL SWIR Telecentric Lenses are designed with broadband AR coatings optimized for a 900 – 1700nm wavelength range. These lenses combine high quality optics with a simplified non-focusing mechanical design and adjustable iris with a locking set screw. For optimum resolution and performance at the application’s target spectral range, SWIR Machine Vision filters and SWIR LED illumination are recommended. TECHSPEC SilverTL SWIR Telecentric Lenses feature a standard front filter thread for use with color filters, polarizers, protective windows, and illumination adapters for LED or fiber-optic ring lights. These lenses are ideal for semi-conductor measuring and both on-line and off-line machine vision production applications that require precise measurements. Note: Mounting brackets are available that fit the 30mm diameter mounting surface. Specifications General Product Family: Silver SWIR Series Stock No. of Mounting Clamp: #56-870 Sold Separately Type: Telecentric Lens Physical & Mechanical Properties Iris Option: Variable Length (mm): 141.00 Maximum Diameter (mm): 45.00 Weight (g): 280 Construction: Anodized Aluminum Optical Properties Horizontal Field of View, 2/3″ Sensor: 4.4mm Horizontal Field of View, 1/2″ Sensor: 3.2mm Horizontal Field of View, 1/3″ Sensor: 2.4mm Maximum Image Circle (mm): 11.00 Numerical Aperture NA, Object Side: 0.164 Working Distance Tolerance (mm): ±3 Resolution, Image Space MTF @ f/10: >40% @ 40 lp/mm Number of Elements (Groups): 7 (6) Wavelength Range (nm): 900 – 1700 Typical Telecentricity @ 588nm (°): <0.075 Typical Distortion @ 588nm (%): <0.040 Primary Magnification PMAG: 2X Telecentric Lens Magnification: 2.00 Working Distance (mm): 75.00 FOV @ Max Sensor Format, H x V (mm): 4.4 x 3.3 Aperture (f/#): f/6 - f/22 Coating: 900 - 1700nm BBAR Depth of Field (mm): ±0.13 at f/10 (20% @ 20 lp/mm) Magnification: 2X Lens Wavelength Range: SWIR Sensor Maximum Sensor Format: 2/3" Pixel Size (μm): 2.74 Threading & Mounting Filter Thread: M43 x 0.75 (Female) Mount: C-Mount Regulatory Compliance Certificate of Conformance: View ×
