2.4mm Diameter x 3.0mm Length NIR I Coated, N-BK7 Drum Lens

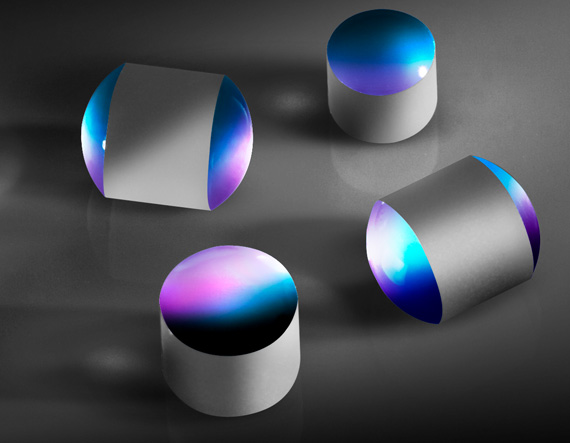

Product Details Easier to Mount and Handle Than Standard Ball Lenses Drum lenses are glass spheres, ground down axially to provide a mounting surface. The ground circumference D simplifies handling issues typically associated with ball lenses. Ideal for optical transmission in fiber communications. Type B Drum lenses have a polished plano-surface for direct fiber contact and perform as elongated PCX lenses. Specifications General Type: Drum Lens Physical & Mechanical Properties Diameter (mm): 2.40 Diameter Tolerance (μm): +0/-50 Length (mm): 3.00 Length Tolerance (μm): ±3 Radius R (mm): 1.50 Radius Tolerance (μm): +0/-1.5 Optical Properties Substrate: Many glass manufacturers offer the same material characteristics under different trade names. Learn More N-BK7 Index of Refraction (n d ): 1.517 Coating: NIR I (600-1050nm) Coating Specification: R avg ≤0.5% @ 600 – 1050nm Wavelength Range (nm): 600 – 1050 Surface Quality: 40-20 Regulatory Compliance RoHS 2015: Compliant × Certificate of Conformance: View × Reach 235: Compliant ×
